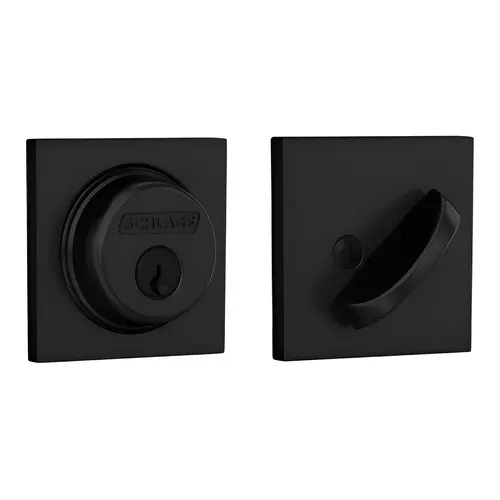

Schlage Custom B60COL622 Collins Single Cylinder Deadbolt C Keyway with 12321 Latch and and 10116 Strike Matte Black Finish
Item #: B60COL622 by Schlage Residential
Brand: Schlage Custom
UPC #: 194555196964
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Easy Installation: One-Person Project; No Extra Hands Needed
- Biggest Adjustable Bolt Available
- Pick and Bump Resistant
- Adjusts to Fit All Standard Door Preparations
- Single Cylinder. Deadbolt - Unlocked by Key from Outside or by Inside Thumbturn
- Lifetime Mechanical & Finish Warranty
- Quality Finishes for Lasting Beauty
- Unique Snap & Stay Design
Finish
Matte Black
Function
Single Cylinder
Series
Schlage Custom Series
Design
Collins Deadbolt
Strike
Round Corner Deadbolt Strike
Backset
Round Corner Adjustable Deadbolt, 2-3/8" or 2-3/4" Backset
Handing
Reversible
Dimension
2-4/5" Square; 2-1/2" Projection
Material
Zinc
Keyway
Schlage C Keyway
Door Thickness
1-3/8" to 1-3/4"
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Rose/Escutcheon Design
Collins Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
1-1/2" or 2-1/8" Bore
Finish code
622
Latch Faceplate Dimension
1" x 2-1/4"
No of inners
1
No Of Pins
5 Pin Cylinder
Standard Latch
12-321: Dual Option Latch, Adjustable 2-3/8" and 2-3/4" Backset
Standard Cylinder
Single 5 Pin Cylinder, C Keyway
Door Thickness Range
1-3/8" To 1-3/4"
Keys Included
2
Standard Strike
10-116: Round Corner Strike with Reinforcer, 2-3/4" x 1-1/8"
Door Handing
Non-Handed
Electronic
No
Latch Throw
1"
Keying
None (Select for Less Cylinder Options)
Keyed
Yes
ANSI/BHMA Standards
E2152 - Deadlock, Single Cylinder
Grade
Grade 1
Projection
2-1/2"
Product Overview
SCHLAGE B SERIES DEADBOLTS
Deadbolts are your first line of defence against a burglar. A deadbolt should be fitted on any exterior door, to protect your family and possessions. Schlage deadbolts feature an exclusive patented steel strike reinforcer. B60 Series deadbolts use 76mm heavy gauge screws that penetrate through the door jamb and right into the wall stud. Add to that a full 25mm-throw deadbolt and you have an excellent deterrent to kick-in attacks. The deadbolt further features a hardened steel roller to prevent cutting and sawing attacks. Schlage s lifetime finish & lifetime mechanical warranties are standard on all B60 Series deadbolts when used in residential applications.
STANDARD FEATURES:
Certification:ANSI/BHMA A156.36-2016 Commercial Grade 1;
ANSI/BHMA A156.40-2015 Residential Grade AAA;
Available UL Listed for 3-hour fire door (B60, B80 and B81 only).
Deadbolt:1" x 2-1/4", radius corner, 1" housing diameter, 1" throw, latch number 12-321
Strike:1-1/8" x 2-3/4", 1/4" radius corner, strike number 10-116
Backset:Adjustable for 2-3/8" or 2-3/4"
Cylinder Standard:N: 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)
Optional N6: 5-pin, keyed 5-pin, C keyway, keyed alike (KA4)
Optional N6-5: 6-pin, keyed 5-Pin, C keyway, keyed alike (KA4)
Door Range:Standard 1-3/8" 1-3/4", Optional door thickness available up to 2-1/4" for B60.
Keys:Two keys per lock, 5-pin, keyed 5-pin, C section
Reinforcement:Integrated strike and reinforcer with 3" screws
