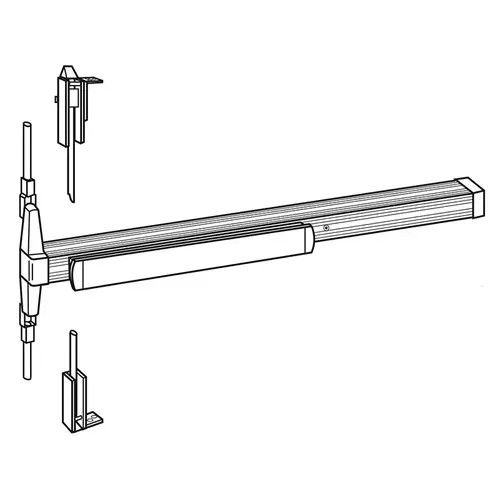

Von Duprin 3347A-EO 3 US3 3' Concealed Vertical Rod Narrow Exit Device Grooved Case, Bright Brass Finish
Item #: 3347A-EO 3 US3 by Von Duprin
Brand: Von Duprin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For single and double doors
- UL listed for Panic Exit Hardware
- ANSI A156.3 – 2001 Grade 1
- Fits door stiles as narrow as 1-3/4" (44mm)
- One piece center case cover
- Hex key dogging
- Comes with strike set
Approved for Commercial Use
Yes
Door Thickness
1-3/4 In.
Handing
Left, Reversible, Right
UL Listed
Yes
Product Class
Commercial
Theme
Commercial
BHMA Certification
Grade 1
ADA
Yes
Fire Rated
No
Panic Proof
Yes
exit device type
Vertical Rod Device
Exit Trim Function
Exit Only
Height
8.1875
Configuration
Concealed
Depth
3.1875
Width
35.375, 45.33
Grade
Grade 1
Hand
Non-Handed
Color
Bright Brass
Color Code
605/US3
Door Width
26 In. - 36 In.
Device Length
36 In.
Door Height
100 In.
Device Type
Concealed Vertical Rod
Dogging Options
Hex Key Dogging
Includes Trim
No
Mechanical Function
Exit Only
Minimum Stile Size
Narrow
Package Qty
1
Physical Appearance
Narrow Stile Pushpad
Strike Bottom
385A
Strike Top
338
Base Material
Brass
Door Material
Hollow Metal
Function
Exit Only
Finish Description
Bright Polished Brass
Finish Family
Polished Brass
Function Description
Exit Only-No Trim
Function Family
Exit Only Device
Series
33 Series
Manufacturer Parent
Allegion
Finish
605 - Bright Brass
Stile Type
Narrow Stile
Latch Throw
3/4"
Dogging
Hex Key Dogging (Default)
Less Bottom Rod
No
Door Handing
Non-Handed
Product Size
36"
Door Thickness Range
1-3/4"
Fasteners
Includes 1-3/4" and 2-1/4" wood/metal door fasteners, SNB included
Switch
LX-RX: Request to Exit / Latch Bolt Monitoring combination
Device Centerline From Finished Floor
39-13/16"
Product Projection
3-13/16"
Trim Function
EO - Exit Only
Lever
None - Select for Non-Lever Function
Product Dimension
8-3/16" x 1-9/16" x 2-13/32"
Product Style
Push Pads
Map Policy
Yes
AX - Accessible Device
Yes
Dogging Configuration
Hex Key Dogging
Pullman Latches
ES - Top Pullman Latch for Electric Strike Application (For Less Bottom Rod Option Only)
Latch Retraction
QEL: Quiet Electric Latch Retraction
Product Overview
Narrow Style, Concealed Vertical Rod Exit Device, Bright Brass
3347A and 3547A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 - 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3347A/3547A fits door stiles as narrow as 1 3/4"(44 mm), wood door stiles as narrow as 4"(102mm). Newly designed device has a one piece center case cover. Device Lengths: 3' 2'4" to 3', 4' 2'10" to 4'. Hex key dogging standard. Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6'8" to 8'4".
3347A fits door stiles as narrow as 2-1/8" (44 mm), wood door stiles as narrow as 4" (102mm).
3347A is for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the 3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.
Device lengths: 2' 2' (610 mm) Door size 3' 2'4" to 3' (660mm to 914 mm) door size 4' 2'8" to 4' (813 mm to 1219 mm) door size
Device centerline from finished floor: 39 13/16" (1006mm)
Center case dimensions: 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8" (16mm) throw
Door undercut: 1 /4" (7mm)
Top & bottom latch: 3 3/4" x 1 1/2" x 1" (89mm x 38mm x 25mm)
Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6'8" (2027mm) to 8'4" (2533mm) Bottom rod adjustable from 35 5/8" (905mm) to 49 5/8" (1260mm) Extension rod kits available for doors over 8'4" (2533mm)
Fasteners & sex bolts (SNB): Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
