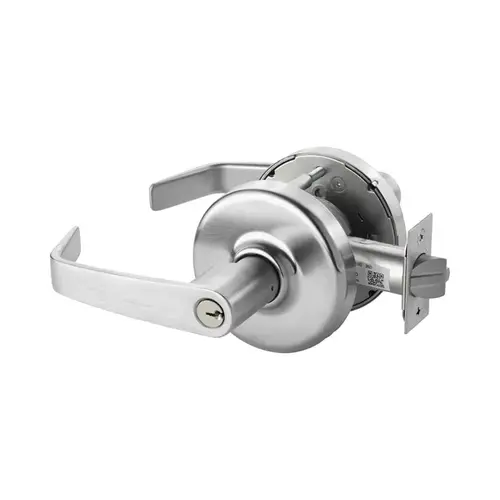

Corbin Russwin CLX3372 NZD 626 CLX3372 Apartment Exit/Public Toilet - Cylindrical Lever Lock
Item #: CLX3372 NZD 626 by Corbin Russwin
Brand: Corbin Russwin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Color
Satin Chrome
Color Code
626/US26D
Fire Rated
3 Hours {A}
Origin
United States
Package Height
4.5
Package Length
10
Package Volume
360
Package Width
8
Grade
ANSI/BHMA Grade 1
Application
Schools and Universities; Hospitals; Corporate Campuses; Government/Municipal Buildings; Commercial Buildings
Backset
2-3/4 Inch
Handing
Non-Handed
Warranty
10 year limited
Keyway
Corbin Russwin L4
Function
72-Public Toilet
Handle Type
Lever
Door Thickness
1-3/4" (44mm) to 2" (51mm)
Rose Diameter
3-1/2 Inch
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Cylinder Type
Non-Keyed
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
ANSI Function
F88
Latch Number
867F21
Latch Type
Deadlocking
Strike Number
SA114
Strike Type
ANSI Curved Lip
ADA Compliant
YES
Finish Family
Satin Chrome
Keying Type
Keyed Random
Lever Style
NZD-Newport
Strike Size
4-7/8" x 1-1/4" x 1-1/4"
Cylinder Material
Brass
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA A156.2; Meets A117.1 Accessibility Code; A156.41 UL/cUL Listed
Cylinder Type Used
Conventional
Function Description
Deadlocking latchbolt by lever either side except when key inside locks outside lever (lever handles are freewheeling in locked position). Key outside retracts latchbolt. Inside lever always free.
Front Size
2-1/4" x 1-1/8"
Function Family
Apartment/Exit/Public Toilet
Strike Lip
1-1/4 Inch
Product Projection
2-15/16 Inch
Trim Material
Solid Cast Zinc (Lever); Brass (Rose)
Minimum Stile Width
4-1/2 Inch
Features
Secure high traffic openings with design options to compliment any decor. Manufactured of the highest-quality materials to provide durability, strength, and reliability.
Product Type
Cylindrical Lock
Series
CLX3300 Series
Manufacturer Parent
Assa Abloy
Lever Length-Inches
4-1/2 Inch
Latch Corner
Square
Knob/Lever Size
4-1/2 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
CorbinRusswin-CLX3372-NZD
Finish
626 - Satin Chrome
ANSI/BHMA Standards
F88
Keyed
Yes
Cylinder
Conventional Cylinder 6-pin (L4 Keyway) - Standard
Door Handing
Non-Handed
Lever Design
NZD - Newport Lever
Standard Strike
ANSI Curved Lip 1-1/4" Lip Length
Substrate Type
Steel, Zinc dichromated for corrosion resistance
Door Thickness Range
1-3/4" to 2"
Lock Type
Cylindrical
Duty Level
Heavy Duty
Standard Cylinder
Conventional 6-pin Cylinder, L4 Keyway
Standard Latch
Deadlatch - Square corner front, 2-1/4" x 1-1/8", 2-3/4" backset
Product Overview
Grade 1 Apartment/Exit Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designed to secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you'll never have to sacrifice style for strength. It supports all cylinder formats - from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
