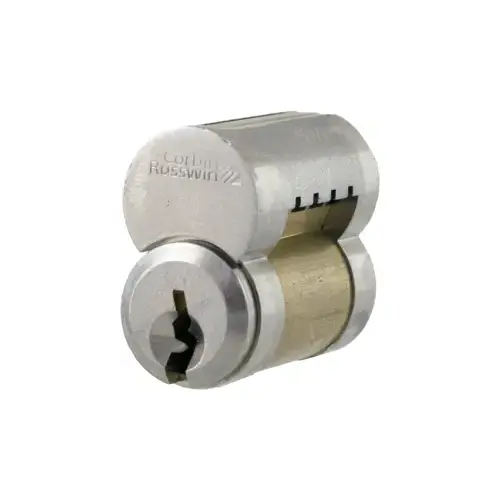

Corbin Russwin CR8000-626-59A1 LFIC Large Format IC Core, 6-Pin Core 59A Keyway, 0-Bitted, Satin Chrome 626/ US26D
Item #: CR8000-626-59A1 by Corbin Russwin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Alternate Part Number-1
103635
Keyway
59A1
Keying
0-Bitted
Cylinder Type
6-Pin, LFIC - Corbin
Finish code
626
Finish
Satin Chrome
Material
Brass
Manufacturer Warranty
Limited 1 year warranty
Hazardous Material
No
No of inners
1
No Of Pins
6 Pin
Product Overview
Corbin Interchangeable Core (IC) Cylinders
Interchangeable cores provide rekeying convenience for virtually all types of keying systems.This type of cylinder saves time and money over the life of a building.
OPTIONS
Advantages
Rekeying can be done by non-technical personnel without removing hardware from the door. When used system wide, IC provides tremendous rekeying convenience. When planned from the inception of a system, IC cylinders can be integrated with conventional cylinders.
Applications
IC is recommended for virtually all types of keying systems, such as office buildings, hotels, schools, hospitals and universities. When used in exit devices and other installations which are labor intensive to rekey, IC saves time and money over the life of the building.
Operations
All operating keys (change, master, grand master) operate the lock normally. To rekey, use the special control key. The control key operates at a separate shear line in certain chambers within the core. Only the control key is required to remove and install a core.
Cores
Cores are available in 6-pin (standard), 7-pin, security and Pyramid. Two nickel silver change keys are furnished standard per core. Control keys will be furnished when ordered.
Construction Keying
Corbin recommends temporary construction cores for greater security. Special construction master keying is also available, when planned from the inception of the keying system.
Core Marking
Concealed Key Control (CKC) is available for all Corbin Russwin cores.
