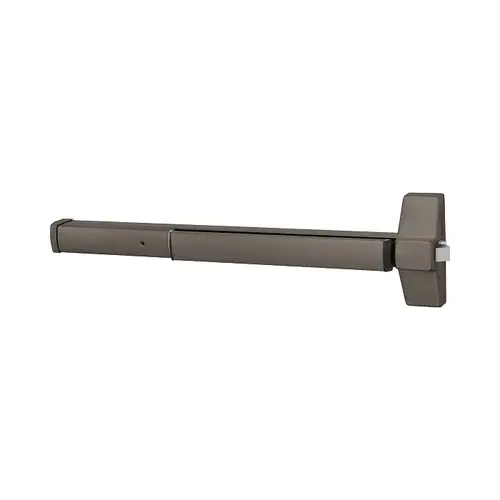

Corbin Russwin ED5200A-613-W048-M54 ED5200A Rim 3 Hour Fire Rated Device 48" Oil Rubbed Dark Bronze

ED5000 SeriesRim Features

The Corbin Russwin ED5000 Series exit devices areideal for environments that require durable and attractivesecurity solutions that will last the life of the building.

Available in rim, mortise, surface vertical and concealed vertical rod configurations, these exit devices exceed ANSI/BHMA Grade 1 requirements for cycle and strength.

These exit devices are aesthetically pleasing and offer a full range of decorative trim designs, including the Museo® and Vineyard™ Collections.

Features: Handing:

• Standard device is non-handed.
• Double Cylinder Device is Handed.
• Lever trim is handed.

Bar Length:

• Easily field cut to size.
• Standard: 36" (914mm) bar fits 30"- 36" (762mm-914mm) door.
• Optional: 24" (610mm) bar fits 24" (610mm) door;
  specify W024.
• Optional: 48" (1219mm) bar fits 36"-48" (914mm-1219mm) door; specify W048.

Door Thickness:

• 1-3/4" (44mm) standard.
• Optional: 2" (51mm); specify D200.
• Optional: 2-1/4" (57mm); specify D214.

Stile:

• Minimum width 4-1/2" (114mm).

Latchbolt:

• 3/4" (19mm) throw, stainless steel pullmantype with stainless steel deadlocking latch.

Materials:

• Heavy-duty cold-forged steel chassis; heavygauge steel mechanisms, electroplated for corrosion resistance; finished parts are brass, bronze or stainless steel; stainless steel springs; nylon bearings.

Projection:

• 3-1/4" (83mm) active, 2-3/4" (70mm) dogged.

Dogging:

• Standard on panic devices; single-point 1/4 turn hex key dogging.
• Optional: less dogging, specify M51
• Optional: cylinder dogging; specify M52.
• Optional: electric dogging; specify M97.
• Mechanical dogging not available on firerated devices.

Fasteners:

• Standard on panic devices: machine screws and wood door fasteners.
• Standard on firerated devices: sex nuts and bolts.
• Optional on panic devices: sex nuts and bolts for use on wood, composite, or unreinforced metal doors; specify M54.
• Optional wood screws for use on approved fire-rated solid wood or wood core doors. Specify M64.

Strike:

• Surface-mounted 3/8" (10mm) diameter roller strike, complete with positive locking plate and shims, assuring low friction relocking for a long, trouble-free life.

Functions and Trims:

• Through-bolted lever, knob, pull and thumbpiece trims available with wide range of functions.

Cylinders:

• Cylinder not included unless specified

Removable Mullion:

• Used to install two Rim Exit Devices in a double door opening. May be quickly and easily removed when a full double door opening is temporarily required.

Shim Kit:

• Optional for mounting device over raised vision light molding; specify M58.

Warranty:

• Five-year limited

Certification/Compliance: ANSI:

• Meets A156.3, Type 1, Grade 1.
• Meets A117.1 Accessibility Code.

UL /cUL:

• All devices listed for safety as panic hardware; devices comply with UL 305 standards for panic hardware.
• Three-hour fire-rated devices listed as fire exit hardware for A label and lesser class 4' x 8' single or 8' x 8' double doors; UL symbol on active case cover indicates listing.
• Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.

California State Reference Code:

• This product has been approved by the California State Fire Marshal pursuant to section 13144.1 of the California Health and Safety Code.

NFPA:

• All exit devices comply with NFPA 101 Life Safety Code.
• All fire-rated devices comply with NFPA 80 Fire Doors and Windows.

ADA:

• Exit devices, lever trims and pulls comply with Americans with Disabilities Act.

Finishes: BHMA 605:

• Bright Brass

BHMA 606:

• Satin Brass

BHMA 611:

• Bright Bronze

BHMA 612:

• Satin Bronze

BHMA 613:

• Oxidized Bronze, oil rubbed, available lacquered

613E:

• Dark Oxidized Satin Bronze Equivalent

BHMA 619:

• Satin Nickel Plated

BHMA 625:

• Bright Chromium Plated

BHMA 6261 (Trim only):

• Satin Chromium Plated

626C2:

• Satin Chromium Plated with MicroShield®

BHMA 629:

• Bright Stainless Steel

BHMA 630:

• Satin Stainless Steel

630C2:

• Satin Stainless Steel with MicroShield®

722:

• Black oxidized bronze,oil rubbed

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• 1. Contact factory for devices required in BHMA 626
• 2. Finish available with MicroShield® antimicrobial coating.
