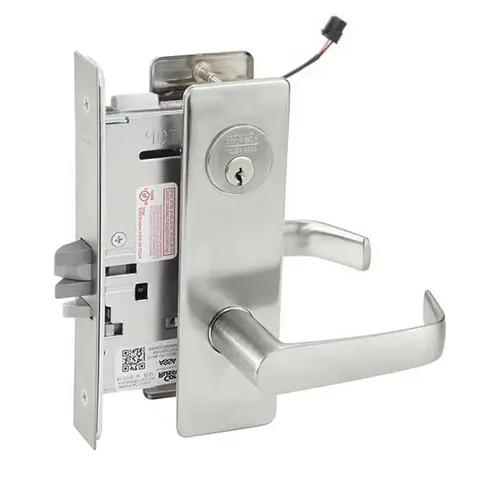

Corbin Russwin ML20932-NSM-630-C6-SAF-M92 ML20932 Mortise Electrified Lever Lockset x REX

Item #: ML20932-NSM-630-C6-SAF-M92 by Corbin Russwin

See reviewsSee reviews

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Sub-Series

ML20932-NSM-C6-SAF-M92

Lever Style Family

Straight Return Lever

Latchbolt Type

2-Piece Mechanical Anti-Friction Insert

Escutcheon Size

7-1/2 Inch x 2-1/4 Inch

Knob/Lever Size

4-13/16 Inch

Latchbolt Size

5/8" x 1"

Manufacturer Parent

Assa Abloy

Series

ML2000 Series

Product Type

Electronic Mortise Lock

Features

Patented Quick Reversible Latchbolt; The Lockset can be Re-Handed Without Disassembling the Lockcase; Request to Exit Monitoring is a SPDT Switch which Monitors the Activation of the Trim (Both Levers Activate Switch); Handed; Quick Reversible

Rose/Escutcheon Length

7-1/2 Inch

Rose/Escutcheon Width

2-1/4 Inch

Spacing

3-5/8" (Knob/Lever to Cylinder); 2-7/16" (Knob/Lever to Thumbturn)

Product Projection

2-5/8 Inch

Strike Lip

1-1/8" (29mm) Lip to Center

Function Family

Fail Safe

Front Size

8" x 1-1/4" x 3/32"

Function Description

Latchbolt by grip either side, unless both grips are locked by energizing lock. Latchbolt by key inside or outside when lock is energized. Auxiliary latch deadlocks latchbolt.

Case Dimensions

5-7/8" x 4" x 15/16"

Front Material

Heavy Gauge Steel

Standards

ANSI/BHMA Certified A156.13 Series 1000, Operational and Security Grade 1, Meets A117.1 Accessibility Code; UL/cUL Meets Requirements of UL1034

Hub Material

Steel

Lever Size

4-13/16 Inch

Hub Size

5/16 Inch

Rose/Escutcheon Trim

M-Wrought Escutcheon

Strike Size

4-7/8" x 1-1/4"

Lever Style

NS-Newport

Keying Type

0-Bitted

Finish Family

Stainless Steel

ADA Compliant

YES

Strike Type

Straight Lip

Electric Options

Request to Exit

Finish Description

Satin Stainless Steel

Lip to Center

1-1/8 Inch

Latch Throw

3/4 Inch

Cylinder Type

Large Format Interchangeable Core

Strike

ANSI-Straight Lip

Door Thickness

1-3/4 inch

Handle Type

Lever

Function

932-Electrified Fail Safe

Keyway

Corbin Russwin L4

Color Code

630/US32D

Warranty

10 Year Limited on Lockset. 2 Year Limited on Electronic Components

Backset

2-3/4 Inch

Application

Offices, Schools, Hospitals, Hotels

Grade

ANSI/BHMA Grade 1

Product Overview
Double Cylinder, Both Grips Lock, Fail Safe and Request To Exit (REX), NS-Newport Lever, M Escutcheon, 630 Satin Stainless Steel, IC 6-Pin Cylinder, L4 Keyway
