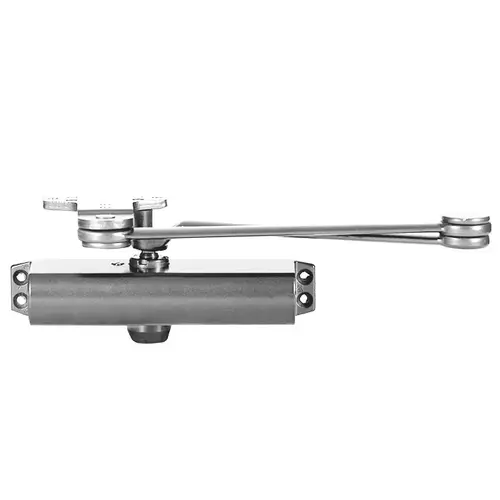

Stanley Security QDC313 NC 689 Cush Door Closer Aluminum Finish
Item #: QDC313 NC 689 by Stanley Security Solutions
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Closer With Dead Stop Arm. Cast Aluminum. Non-Handed. All Weather Fluid. Adjustable From Sizes 1 - 6. No Cover. Delayed Action And Back Check Standard
- Comes with a lifetime mechanical warranty and a three-year warranty on finish.
- BHMA/ANSI Grade 1 certified, significantly exceeds performance requirements, and are fully adjustable with a barrier-free option to meet ADA requirements.
- 3-Year Finish & Lifetime Mechanical Warranty
- Premium performance options like delayed action and a back check valve come standard with the QDC300 series.
Series
QDC300 Series
Function
Cush
Finish
Aluminum
Color
Aluminum Painted
Color Code
689/US28
Sub-Series
DC_Surface Mounted Closers_stanley_10
Closer Hold-Open
false
Manufacturer Parent
DormaKaba
Product Type
Door Closer/Holder/Stop
Features
Smaller, Narrower Footprint; Retrofit
Fastener Type
Wood and Machine Screws Standard; Sex Nuts and Self-Reaming, Self-Tapping Screws Standard
Function Family
Non Hold Open Door Closer
Closer Fluid
All Weather Fluid
Closer Arm Type
Heavy Duty Arm
Standards
ANSI/BHMA A156.4; ANSI A117.1; UL/cUL listed; UL10c; UL10b
Closer Cover
Without Cover
Product Material
Cast Aluminum
Finish Family
Aluminum
ADA Compliant
YES
Finish Description
Aluminum Painted
Maximum Door Opening
180°
Door Size
30" to 48" (Interior); 32" to 48" (Exterior)
Door Thickness
1-3/4 inch
Spring Size
1-6
Warranty
Limited Lifetime Mechanical Warranty; 3 Year Finish Warranty
Handing
Non-Handed
Hand
Non-Handed
Application
Storefront Applications
Grade
ANSI/BHMA Grade 1
Mounting Type
Push or Pull Side
Product Overview
Grade 1 Door Closer, Hd Arm W/Compress Stop, No Cover, Aluminum
Combines a slim design and small footprint with proven durability, making it a great choice for even the narrowest full glass doors.
The smaller, narrower footprint of Stanley's QDC300 series makes it compatible with even the narrowest top rail doors. The QDC300 series includes many premium design components standard, and with a wide range of available options and customizable features, these door closers provide flexible value without compromising quality.
