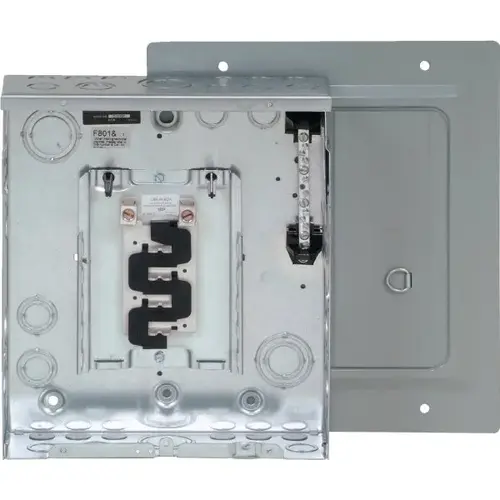

Cutler-Hammer BR816L125FDP 125 Amp 8-Space 16-Circuit Main Lug Indoor Load Center
Item #: BR816L125FDP by Eaton Cutler-Hammer
Brand: Cutler-Hammer
UPC #: 786676001434
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Cutler-hammer 125 Amp 8-space 16-circuit Main Lug Indoor Load Center
- Panel Has 8 Spaces For Up To 16 Circuits
- Panel Includes Flush Mount Cover With Door
- MFG# BR816L125FDP
Voltage
120/240 V
Material
Aluminium
For Use With
Type BR breakers
Color
Gray
Package Quantity
1
UL Listed
No
Amperage
125 Amp
ADA Compliant
No
Circuit Breaker Type
Type BR Circuit Breaker
Indoor/Outdoor
Indoor
Load Center Type
Main Lug
Maximum Amperage
125 amp
NEMA Rating
1
Number of Circuits
16
Number of Phases
1
Number of Spaces
8
Enclosure Type
Enclosed
Features
Tin Plated Aluminum Bus
UNSPSC
39121601
Mount Type
Flush
MADE IN THE USA
Yes
Recommended Environment
Indoor
Electrical Box Type
Load Center
Assembled Product Depth
3.56 in.
Assembled Product Height
13 in.
Assembled Product Width
11 in.
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Wire Size
#14-1 AWG Cu/Al
Phase
Single-Phase
Trim Type
Flush (With Door)
Amperage Rating
125 A
Сonfigurations Type
Ground bar kits priced separately
Bus Material
Aluminum
Cover Type
Cover included
Enclosure Material
Metallic
Interrupt Rating
10 kaic
Main Circuit Breaker
BR
Product Overview
Eaton Type BR Main Lug Loadcenter 125A Single-Phase 8/16 Circuit NEMA 1 EnclosureProfessional electrical distribution for residential and commercial applicationsMount the unit in a suitable location with appropriate clearance and access for connections and service. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity. Configure any available load management or control features as supported by the provided specifications. Test automatic transfer or operational functionality and verify proper performance before placing into service. Complete final inspection and follow ongoing maintenance practices appropriate to the product category. Professional Applications
The Eaton Type BR Main Lug Loadcenter delivers reliable 125A single-phase power distribution with 8 spaces and 16 circuit capacity. Featuring a NEMA 1 metallic enclosure and aluminum bus construction, this loadcenter provides professional-grade electrical distribution for diverse installation requirements. The main lug design offers flexible utility connection options while maintaining the trusted Eaton quality and performance standards.
Professional Features & Benefits- 125A Service Rating: Provides substantial power capacity for residential and light commercial electrical distribution needs
- Single-Phase 120/240V: Standard voltage configuration ensures compatibility with common electrical systems and appliances
- NEMA 1 Metallic Enclosure: Durable construction protects internal components while providing secure indoor installation capability
- 8 Spaces/16 Circuit Capacity: Flexible circuit arrangement accommodates various load configurations and future expansion needs
- 10 kAIC Interrupt Rating: Reliable fault protection capability ensures safe operation under electrical fault conditions
- Aluminum Bus Material: Efficient conductor design provides reliable power distribution with proven performance characteristics
- Main Lug Configuration: Versatile connection design allows direct utility feed without integral main breaker for flexible installation options
- Amperage Rating: 125 A
- Box Size: 7
- Bus Material: Aluminum
- Cover Type: Cover included
- Enclosure: NEMA 1
- Enclosure Material: Metallic
- Interrupt Rating: 10 kAIC
- Main Circuit Breaker: BR
- Number Of Circuits: 16
- Number Of Spaces: 8
- Phase: Single-phase
- Product Details: Main lug
- Voltage Rating: 120/240V
- Wire Size: #14-1 AWG Cu/Al
- Residential electrical service panels and distribution systems
- Small commercial facilities requiring reliable power distribution
- Multi-unit residential properties and apartment complexes
- Professional offices and retail establishments
- Light industrial applications with moderate power requirements
- Electrical upgrade and renovation projects
- New construction electrical installations
Eaton loadcenters represent decades of electrical distribution expertise with proven reliability in demanding applications. The NEMA 1 metallic enclosure construction and 10 kAIC interrupt rating demonstrate Eaton's commitment to safety and durability, while the Type BR circuit breaker compatibility ensures long-term serviceability and parts availability for professional electrical installations.
