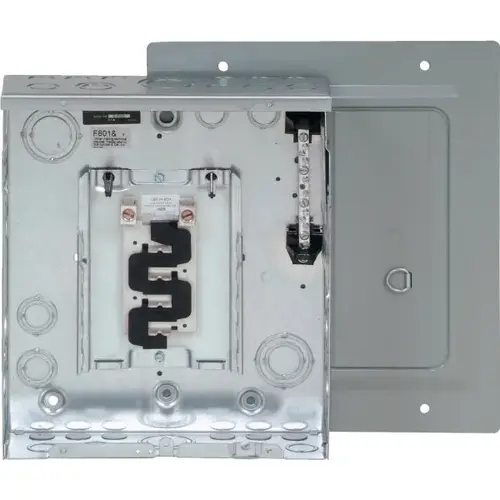

Cutler-Hammer BR816L125SDP 125 Amp 8-Space 16-Circuit Main Lug Indoor Surface Load Center
Item #: BR816L125SDP by Eaton Cutler-Hammer
Brand: Cutler-Hammer
UPC #: 786676001427
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Cutler-hammer 125 Amp 8-space 16-circuit Main Lug Indoor Surface Load Center
- Panel has 8 spaces for up to 16 circuits
- Panel includes surface mount cover with door
- MFG# BR816L125SDP
TAA/BAA Compliant
Yes
AbilityOne
No
GSA Approved
No
Assembled Product Width
11 in.
Assembled Product Height
13 in.
Assembled Product Depth
3.56 in.
Electrical Box Type
Load Center
Recommended Environment
Indoor
MADE IN THE USA
Yes
Mount Type
Surface
UNSPSC
39121601
Features
Metallic Enclosure Material
Enclosure Type
Enclosed
Number of Spaces
8
Number of Phases
1
Number of Circuits
16
NEMA Rating
1
Maximum Amperage
125 amp
Load Center Type
Main Lug
Indoor/Outdoor
Indoor
Circuit Breaker Type
Type BR Circuit Breaker
ADA Compliant
No
Mounting Location
Surface
Amperage
125 Amp
UL Listed
No
Package Quantity
1
Color
Gray
For Use With
Type BR breakers
Material
Aluminium
Voltage
120/240 V
Wire Size
#14-1 AWG Cu/Al
Phase
Single-Phase
Trim Type
Surface (with door)
Amperage Rating
125 A
Сonfigurations Type
Ground bar kits priced separately
Bus Material
Aluminum
Cover Type
Cover included
Enclosure Material
Metallic
Interrupt Rating
10 kaic
Main Circuit Breaker
BR
Product Overview
Eaton Type BR Main Lug Loadcenter 125A Single-Phase 8/16 Circuit NEMA 1 EnclosureProfessional electrical distribution for residential and commercial applicationsMount the unit in a suitable location with appropriate clearance and access for connections and service. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity. Configure any available load management or control features as supported by the provided specifications. Test automatic transfer or operational functionality and verify proper performance before placing into service. Complete final inspection and follow ongoing maintenance practices appropriate to the product category. Professional Applications
The Eaton Type BR Main Lug Loadcenter delivers reliable 125A single-phase power distribution with 8 spaces and 16 circuit capacity. Featuring a NEMA 1 metallic enclosure and aluminum bus construction, this loadcenter provides professional-grade electrical distribution for diverse installation requirements. The main lug design offers flexible utility connection options while maintaining the trusted Eaton quality and performance standards.
Professional Features & Benefits- 125A Service Rating: Provides substantial power capacity for residential and light commercial electrical distribution needs
- Single-Phase 120/240V: Standard voltage configuration ensures compatibility with common electrical systems and appliances
- NEMA 1 Metallic Enclosure: Durable construction protects internal components while providing secure indoor installation capability
- 8 Spaces/16 Circuit Capacity: Flexible circuit arrangement accommodates various load configurations and future expansion needs
- 10 kAIC Interrupt Rating: Reliable fault protection capability ensures safe operation under electrical fault conditions
- Aluminum Bus Material: Efficient conductor design provides reliable power distribution with proven performance characteristics
- Main Lug Configuration: Versatile connection design allows direct utility feed without integral main breaker for flexible installation options
- Amperage Rating: 125 A
- Box Size: 7
- Bus Material: Aluminum
- Cover Type: Cover included
- Enclosure: NEMA 1
- Enclosure Material: Metallic
- Interrupt Rating: 10 kAIC
- Main Circuit Breaker: BR
- Number Of Circuits: 16
- Number Of Spaces: 8
- Phase: Single-phase
- Product Details: Main lug
- Voltage Rating: 120/240V
- Wire Size: #14-1 AWG Cu/Al
- Residential electrical service panels and distribution systems
- Small commercial facilities requiring reliable power distribution
- Multi-unit residential properties and apartment complexes
- Professional offices and retail establishments
- Light industrial applications with moderate power requirements
- Electrical upgrade and renovation projects
- New construction electrical installations
Eaton loadcenters represent decades of electrical distribution expertise with proven reliability in demanding applications. The NEMA 1 metallic enclosure construction and 10 kAIC interrupt rating demonstrate Eaton's commitment to safety and durability, while the Type BR circuit breaker compatibility ensures long-term serviceability and parts availability for professional electrical installations.
