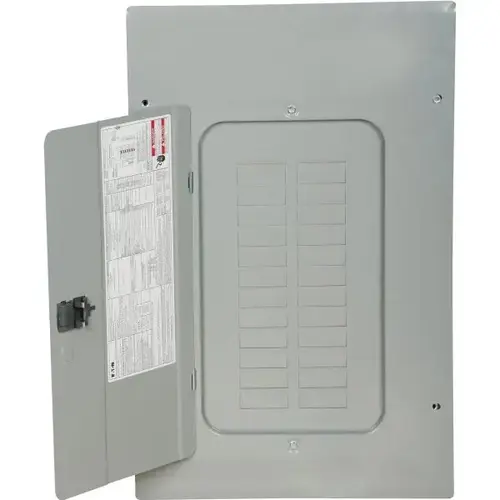

Cutler-Hammer BRP24L125G 125 Amp 24-Space 48-Circuit Main Lug Indoor Load Center
Item #: BRP24L125G by Eaton Cutler-Hammer
Brand: Cutler-Hammer
UPC #: 786676001199
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Cutler-hammer 125 Amp 24-space 48-circuit Main Lug Indoor Load Center
- Panel has 24 spaces for up to 24 circuits
- Panel includes cover and ground bar
- H: 23", w: 14.31", d: 3.88"
- MFG# BRP24L125G
TAA/BAA Compliant
Yes
AbilityOne
No
GSA Approved
No
Assembled Product Width
14.31 in.
Assembled Product Height
3.88 in.
Assembled Product Depth
23 in.
Electrical Box Type
Load Center
Recommended Environment
Indoor, Outdoor
MADE IN THE USA
Yes
Mount Type
Flush, Surface
UNSPSC
39121601
Features
1-Panel For Either Top Or Bottom Applications
Enclosure Type
Enclosed
Number of Spaces
24
Number of Phases
1
Number of Circuits
48
NEMA Rating
1
Maximum Amperage
125 amp
Load Center Type
Main Lug
Indoor/Outdoor
Indoor/Outdoor
Circuit Breaker Type
Type BR Circuit Breaker
ADA Compliant
No
Mounting Location
Surface
Amperage
125 Amp
UL Listed
No
Package Quantity
1
Color
Gray
For Use With
Type BR 1-Inch Breakers
Material
Galvanized Steel
Voltage
120/240 V
Used with
Type BR 1-inch breakers
Phase
Single-Phase
Mounting Method
Surface, flush
Number of Poles
Single-pole
Bus Material
Aluminum
Cover Type
Cover included
Enclosure Material
Metallic
Interrupt Rating
10 kaic
Weight (lb)
21.20
Size (W x H x D)
15.90×4.80×25.20
Product Overview
Eaton BR Series Main Lug Loadcenter 125A Single-Phase 120/240V Surface/Flush MountProfessional electrical distribution for residential and commercial applicationsMount the unit in a suitable location with appropriate clearance and access for connections and service. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity. Configure any available load management or control features as supported by the provided specifications. Test automatic transfer or operational functionality and verify proper performance before placing into service. Complete final inspection and follow ongoing maintenance practices appropriate to the product category. Professional Applications
The Eaton BR Series Main Lug Loadcenter delivers reliable 125A electrical distribution with single-phase 120/240V configuration. This professional-grade loadcenter features metallic enclosure construction with aluminum bus material and 10 kAIC interrupt rating for dependable power distribution. Designed for use with Type BR 1-inch breakers, this versatile unit offers both surface and flush mounting options with included cover for complete installation flexibility.
Professional Features & Benefits- 125A Service Rating: Provides ample capacity for residential and light commercial electrical distribution needs
- Single-Phase 120/240V: Standard voltage configuration compatible with most residential and commercial applications
- 10 kAIC Interrupt Rating: Ensures reliable fault protection and electrical safety in demanding environments
- Aluminum Bus Material: Lightweight yet durable construction reduces installation weight while maintaining excellent conductivity
- Surface/Flush Mounting: Flexible installation options accommodate various space requirements and aesthetic preferences
- Type BR Breaker Compatibility: Works exclusively with Type BR 1-inch breakers for consistent performance and proper fit
- Metallic Enclosure: Robust construction provides superior protection and long-term durability
- Bus Material: Aluminum
- Cover Type: Cover included
- Enclosure Material: Metallic
- Interrupt Rating: 10 kAIC
- Mounting Method: Surface, flush
- Number Of Poles: Single-pole
- Phase: Single-phase
- Product Color: Gray
- Product Details: MLO
- Used With: Type BR 1-inch breakers
- Voltage Rating: 120/240V
- Residential electrical service panels and distribution
- Small commercial facilities and office buildings
- Multi-unit residential properties and condominiums
- Retail establishments and professional offices
- Light industrial applications requiring reliable power distribution
- Renovation and upgrade projects requiring modern loadcenter solutions
Eaton BR Series loadcenters represent proven reliability in electrical distribution with metallic enclosure construction and 10 kAIC interrupt rating for professional-grade performance. The included cover and flexible mounting options ensure complete installation solutions, while aluminum bus construction provides optimal conductivity and durability for long-term service.
