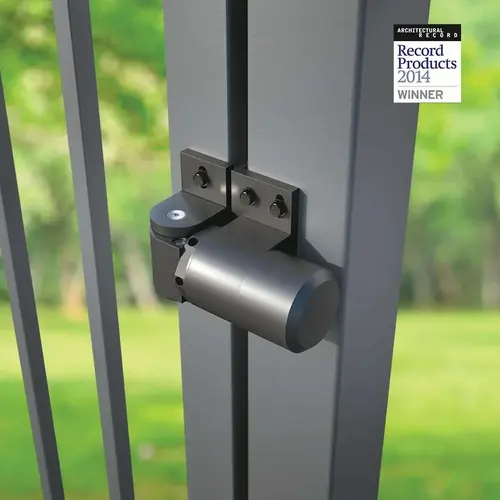

SureClose 74108323T ReadyFit Hinge/Closer (Torx)-SF-Alum Bracket+screws, Dark gray
Item #: 74108323T by D&D Technologies
In Stock $427.14 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Externally Mounted, Hydraulic Self-Closing Hinge-Closer
- Controlled quiet close
- Gap variance of Min. 1/2" to Max. 1⅜" (12-35mm)
- Screw-on or weld-on (screws and brackets included)
- Final Snap-close action in all "108" models
- Maximum opening angle 88º
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 2" (50mm)
- Must install a gate-stop to prevent the gate opening more than 90º
- One Hinge-Closer (108) + one Plain Hinge (SM) hold up to 180lb (80kg) – See Chart
- Two Hinge-Closers hold 260lb (120kg). See detailed table – See Chart
Color
Dark Gray
Fasteners included
Yes
Type
Hinge-Closer
Gate Material
Aluminum, Steel/Ornamental Iron
Ideal Gate Gap
1/2"–1⅜" (12-35mm)
Minimum Post Size
2"+ (50mm)
Approx Gate Size
4ft W x 6ft H (1.2m x 1.8m)
Fixing Method
Screw-On, Bolt-On, Weld-On
Gate Application
Pool Gate, Child Safety Gate, Front Gate, Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate, Safety Gate
Gate Frame/Post Shape
Square-to-Square
Gate Type
Self-Closing, Non Self-Closing
Self-Closing Gate Weight
Up to 180lb (80kg), Up to 260lb (120kg)
Mounting
Screw-on
Color/Finish
Black Anodised
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade Aluminum. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts.
