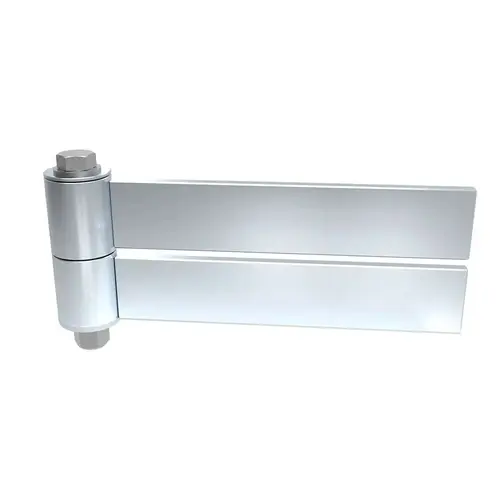

Shut It BadAss CI3925 Strap Hinge - 10" (254mm), Zinc
Item #: CI3925 by D&D Technologies
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- High-temperature sealed bearings – safe to powder coat with hinges installed on gate
- No greasing, no maintenance. EVER!
- Horizontal adjustability for perfect installations
- Suitable for motorised, uphill or heavy gates
- For square-posted, weld-on installations
- Zinc electroplated external components
- Swings 180º, fixed gap variance 1/2" (13mm)
- Leaf straps can be cut to length
- Load rating per gate: 3,000 lb (1,360kg)
- Maximum gate weight: 1,500 lb (680kg)
Color
Zinc
Fasteners included
No
Gate Material
Steel/Ornamental Iron
Ideal Gate Gap
Fixed at 1/2" (13mm)
Minimum Post Size
1 1/2"+ (40mm)
Approx Gate Size
6ft W x 8ft H (1.5m x 2m)
Fixing Method
Weld-On
Gate Application
Side Gate, Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
Gate Frame/Post Shape
Square-to-Square
Gate Type
Non Self-Closing
Type
Hinge
Model
10" (254mm)
Color/Finish
Zinc
Product Overview
10" Strap Hinge
One of SHUT IT Gate Hardware’s newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10" (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.
One of SHUT IT Gate Hardware’s newest gate hinges, the BadAss Strap Hinge, is a barrel hinge that includes either an 6" (152mm) or 10" (254mm) strap for convenient and flexible gate installations. The strap hinge is also one of SHUT IT’s strongest gate hinges with more bearing load than any hinge on the market. By combining different lengths top and bottom it is the ideal solution for opening gate on an uphill gradient.
