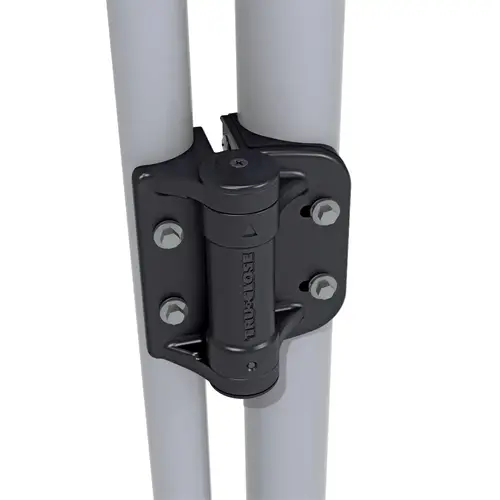

D&D Technologies TCHDRND1-MK2 Self-Closing Gate Hinge for Round-Post Applications

TruClose® Round Heavy Duty HingesFor Round-Post Applications

Fits to diameters: TCHDRND1: Gate frame: 35 & 41mm, Post: 48-51, 60 & 73mm TCHDRND2: Gate frame: 48-51mm, Post: 48-51 & 73mm TCHDRND1: Gate frame: 1 3/8" & 1 5/8", Post: 1 4/8"-2”, 2 3/8" & 2 7/8" TCHDRND2: Gate frame: 1 7/8"-2", Post: 1 7/8"-2” & 2 7/8" TruClose® Safety Gate Hinges are the world's most trusted child safety gate hinges. These polymer hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The TruClose ROUND hinges are designed for round-posted heavy or high-traffic gates weighing up to 60kg. The engineering-grade polymers and a stainless-steel closing spring deliver hinges designed to last a lifetime. Due to a high degree of safety and reliability, TruClose hinges are ideal for child safety gates around swimming pools*, childcare centers, schools, homes, playgrounds and hotels/resorts. TruClose hinges are quick and easy to install and to adjust for self-closing speed. D&D has sold millions of these award-winning TruClose® Safety Gate Hinges worldwide.

*When installing TruClose® hinges to a swimming pool gate always confirm any safety requirements with your local Council or safety authorities to ensure compliance.

Features:

• Two models available, for variations in post/gate size

• D&D-patented tension adjustment

• Self-closes gates up to132lb (60kg)

• UV stabilized, self-lubricating durability

• Made from super-strong engineered polymer

• Internal stainless steel spring and components

• Tek screw fasteners included

• Alignment legs & adjustment adapters

Specifications: Brand:

• TruClose®

Product Code:

• TCHDRND1-MK2
• TCHDRND2-MK2

Gate Application:

• Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate

Gate Type:

• Self-Closing

Gate Material:

• Chain Link

Self-Closing Gate Weight:

• Up to 132lb (60kg)

Approx Gate Size:

• 4ft W x 6ft H
• (1.2m x 1.8m)

Gate Frame/Post Shape:

• Round-to-Round

Min Post Size:

• Round

deal Gate Gap:

• 1" (25mm)

Fixing Method:

• Screw-On

Color/Finish:

• Black

Round Post Diameter:

• TCHDRND1: Gate frame: 1 3/8" & 1 5/8"
• Post: 1 7/8, 2 3/8" & 2 7/8",
• TCHDRND2: Gate frame: 1 7/8", Post: 1 7/8" & 2 7/8"
