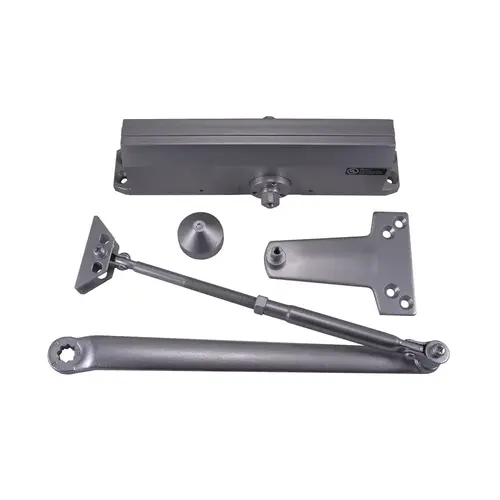

116 Series Heavy Duty Door Closer, Aluminum Painted

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Design Hardware DH-116-AL 116 Series Heavy Duty Door Closer, Aluminum Painted

Item #: DH-116-AL by Design Hardware

See reviews See reviews

In Stock $104.83 /each

SAVE UP TO 10.48

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment

Finish

Aluminum Painted

Grade

ANSI/BHMA Grade 1

Spring Size

Adjustable 1-6

Function

Tri-Packed Non-Hold Open Arm

Mount

Push or Pull Side

Finish Description

Aluminum Painted

Product Type

Door Closer/Holder/Stop

Application

Commercial

Hand

Non-Handed

Handing

Non-Handed

Warranty

Limited Lifetime Warranty

Mounting Type

Push or Pull Side

Door Thickness

1-3/4 inch

ADA Compliant

YES

Finish Family

Aluminum

Included Components

Machine Screws and Thru Bolts; Wood Screws; Self Tapping Machine Screws

Product Material

Cast Aluminum

Closer Cover

Without Cover

Standards

Grade 1 - ANSI A156.4; UL Listed

Closer Arm Type

Regular Non-Hold Open

Function Family

Non Hold Open Door Closer

Mounting Hole Size

9-1/16" x 3/4"

Features

Adjustable Spring Power and Speed Controls; Independent Latch Sweep Speed Controls

Door Size

2' 4" to 4' 6" (Interior); 2' 6" to 4' (Exterior)

Maximum Door Opening

180°

Manufacturer Parent

Mesker Openings Group

Closer Hold-Open

false

Sub-Series

DC_Surface Mounted Closers_corbin_Design_Hardware_1

116 Meets ANSI A156.4 – Grade 1 Standards UL Listed for “A” Label 3 Hour Fire Doors, UL10C Positive Pressure Rated Meets ADA requirements ANSI A117.1 Heavy Duty Cast Aluminum Closer Body with Rack & Pinion Construction Heat Treated Heavy Duty Steel Piston, Spindle & Spring Adjustable Spring Power from Size 1-6 – Factory preset at size 3 Independent Latch & Sweep Speed Controls Back Check Intensity Control Standard Staked Valves to prevent backing valves out too far Plastic Pinion Cap & PA Bracket included Molded Plastic Cover available separately CTC Hole Pattern: 9 1/16″ CTC Horizontally x 3/4″ CTC Vertically 2 7/8″ projection without cover Minimum Top Rail: Regular Arm: 3 1/8″ – Top Jamb: 1 7/8 ” – Parallel Arm: 5 3/4″ Machine screws & Thru Bolts, Wood screws & Self tapping machine screws included Includes all screws and brackets for Regular, Top Jamb and Parallel Arm Installations Accessories: Hold Open Arms, Heavy Duty Arms, Drop Plates, Extended Arms & more… Limited Lifetime Warranty
