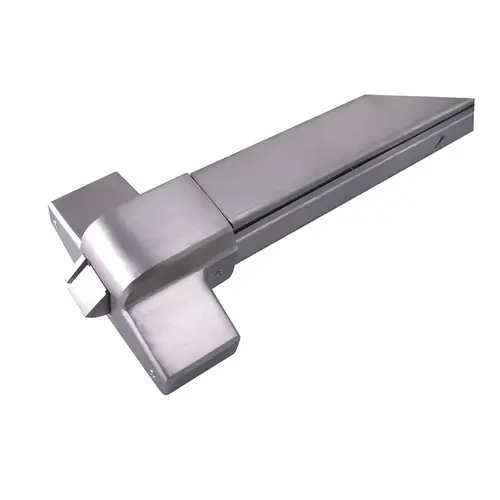

Design Hardware DH-2000R-33-AL 2000R-33 Rim Device hex key dogging, Aluminum Painted

Item #: DH-2000R-33-AL by Design Hardware

See reviews
Product Description

In Stock $152.66 /each

SAVE UP TO 15.27

Buying in bulk

2000R-33 Rim Device hex key dogging, Aluminum Painted

Roll over image to zoom in

Design Hardware DH-2000R-33-AL 2000R-33 Rim Device hex key dogging, Aluminum Painted

Item #: DH-2000R-33-AL by Design Hardware

See reviews See reviews

In Stock $152.66 /each

SAVE UP TO 15.27

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Finish

Aluminum Painted

Length

3

Handing

Non-Handed

Function

Exit Only

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Fire Rated

No

Finish Description

Aluminum Painted

Product Type

Exit Device

Device Type

Rim Device

Dogging Options

Hex Key Dogging

Latch Type

Deadlocking

ADA Compliant

No

Finish Family

Aluminum

Standards

Meets ANSI A156.3 - Grade 1 Standards; UL Listing for Panic Exit Hardware; Meets ADA requirements ANSI A117.1 with Lever Trim

Stile Width

4 Inch

Center Case Dimensions

6 Inch Height x 2-5/16 Inch Wide x 2-1/2 Inch Thick

Device Bar Projection

Pushbar Neutral Undogged: 2-1/2 Inch; Pushbar Depressed Dogged: 1-13/16 Inch

Device Rating

Panic Exit Hardware

Chassis Material

Steel

Function Family

Exit Only Device

For Door Width

3 Foot

Mechanism Case Dimensions

1-5/8" Height x 1-13/16" Wide

Features

Completely Reversible; Simplest and Easiest to Maintain; Limited Lifetime Warranty

Grade

ANSI/BHMA Grade 1

Application

Standard Use

Bolt Throw

5/8 Inch

Manufacturer Parent

Mesker Openings Group

Sub-Series

EDT_Rim_Devices_Design_Hardware_2

Meets ANSI A156.3 – Grade 1 Standards UL Listed for Panic Exit Hardware UL Listed for “A” Label 3 Hour Fire Doors Meets ADA requirements ANSI A117.1 with Lever Trim Non-Handed – Completely Reversible Construction: o Roll Formed Steel or Stainless-Steel Channel & Steel Chassis o Steel or Stainless Steel Headcover & End Cap Finishes: Aluminum, Dark Bronze, Gold Painted & US32D Deadlocking latch bolt with 5/8″ projection Roller Strike with 5/8″ projection with 1/8″ shim 5/32″ Hex Key Dogging Standard on Panic Exit Hardware Device Lengths: 33″ for 3′-0″ wide doors and 42″ for 3-8″ to 4′-0″ wide doors Min. Door Width: 33″ & 42″ devices can be cut down to fit on 2-4″ wide door Center Case Dim.: 6″ Height x 2 5/16″ Wide x 2 1/2″ Thick – 4″ Minimum stile required Mechanism Case Dim.: 1 5/8″ Height x 1 13/16″ Wide Projection: 2 1/2″ Undogged – Push bar Neutral & 1 13/16″ Dogged – Push bar Depressed Fasteners: Wood, Machine & Self Tapping Machine Screws (F2000R includes thru bolts) Exit Alarm Kit ALK-2000 available for new or existing devices Trim & Accessories: ASA & latch filler included, Exterior Trims, Shim Kits other accessories available Limited Lifetime Warranty
