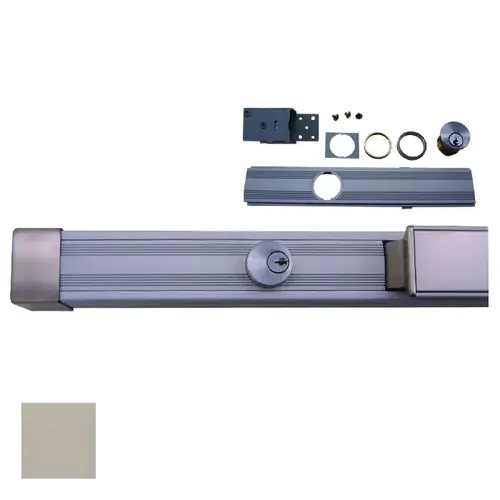

Design Hardware DH-CD-1000-33-32D Cylinder Dogging Kit for 1000 Series, Satin Stainless Steel
Item #: DH-CD-1000-33-32D by Design Hardware
Brand: Design Hardware
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Finish
Satin Stainless Steel
Keyway
Schlage C
Function
CD-Cylinder Dogging
Cylinder Type
Conventional Cylinder
Finish Description
Satin Stainless Steel
Device Type
Rim or SVR
Keyblank Grouping
DESI-SCHL-C-6-1
Keying Charges
CCAM
Product Type
Exit Device Trim
For Use With
1000 Series 5Im and S95 Exit Devices
Warranty
Limited lifetime
ADA Compliant
No
Finish Family
Stainless Steel
Cylinder Type Used
1-1/8" Mortise Cylinder
Function Family
Part/Component
Product Projection
2-7/8 Inch
Features
Push and Pull Mode
Series
Parts/Accessories
Manufacturer Parent
Mesker Openings Group
Sub-Series
DH-CD-1000-33-32D
Parts and Accessories Type
Replacement Parts
Duty Level
Standard Duty
Application
1000 Series 5Im and S95 Exit Devices
Length
33"
Product Overview
Specification
Part Numbers: CD-1000 33" for standard length devices & CD-1000 42" for long devices
Application: Cylinder Dogging Kits are used to convert 1000 series devices from standard hex key
dogging to key controlled dogging thru a mortise cylinder Operation Cylinder dogging allows the push bar to be locked down using a key so the exit device can operate in push/pull mode to extend the life of the device
Handing: Non-handed
Included Parts: New Slide Cover, Cylinder Dogging Assembly, Mortise Cylinder, Cylinder Collar, Back Plate & Cylinder Retaining Ring
Cylinders: 1 1/8" Mortise cylinder with std. cam (included) - 6 Pin Brass, C Kwy, with 2 Keys 1 3/8" Mortise cylinder housing for 6 or 7 pin Small format IC core (less core)
