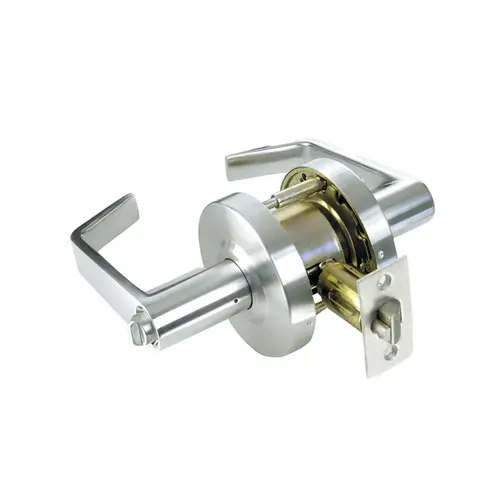

Design Hardware DH-V-75-F-26D V75 Passage Lever Lockset, Satin Chrome
Item #: DH-V-75-F-26D by Design Hardware
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 2
Backset
2-3/4 Inch
Function
75-Passage
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Finish Description
Satin Chrome
Lever Style
F-Flat Lever
Rose/Escutcheon Trim
Round Rose
ADA Approved
False
Product Type
Cylindrical Lock
Warranty
Limited lifetime
Color Code
626/US26D
Handle Type
Lever
Door Thickness
1-3/4 inch
Rose Diameter
3 Inch
ANSI Function
F75
Latch Type
Deadlocking
Strike Type
ASA Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
Combination Screws for Wood or Metal Doors and Frames
Strike Size
1-1/4" x 4-7/8"
Standards
ANSI A156.2; UL Listed
Function Description
Latch retracted by knobs/levers at all times
Front Size
1-1/8" x 2-1/4"
Function Family
Passage/Hall/Closet
Strike Lip
1-1/4 Inch
Trim Material
Solid Zinc Diecast (Lever); Wrought Brass (Rose)
Features
Clutching Levers Standard for Vandal Resistance on Locking Functions; Anti-Sag Mechanism With Independent Lever Return Springs to Prevent Lever Sag
Manufacturer Parent
Mesker Openings Group
Knob/Lever Size
5 Inch
Latch Bolt Material
Stainless Steel
Lever Style Family
Straight Return Lever
Sub-Series
DH-V-75-F-26D
Certification:
- ANSI : Meets & Exceeds ANSI – A156.2, Series 4000, Grade 2 Standards
- UL Listings : UL Listed for “A” Label 3 Hour Fire Doors
- ADA Compliance : Meets ADA and ANSI A117.1 accessibility codes
- Lock Chassis- Steel, Zinc dichromated chassis for Corrosion Resistance
- Clutching- Clutching levers standard for Vandal resistance on locking functions
- Lever Return- Anti-sag mechanism with independent lever return springs to prevent lever sag
- Handing- Non-Handed – Completely reversible (S-A & S-B lever styles are handed)
- Backset & Latchface- 2-3/4” backset with 1-1/8” x 2-1/4” square corner latchface, 2-3/8” backset available
- Latchbolt- Stainless Steel Latch bolt with 1/2″ projection, Deadlocking on keyed functions
- Cylinder Options- 6 Pin Brass Cylinder, C Kwy, with 2 Keys (standard)
- Strikes- 4-7/8” x 1-1/4” ASA (standard) – 2-3/4” T strike available
- Door Preparation- ANSI A115.2 – 2 1/8″ crossbore
- Door Thickness- Factory set for 1-3/4”, can be adjusted to fit 1-3/8” to 2”
- Lever Designs- Flat (standard) & Curved, Half Curved, S-A & S-B available
- Standard Finish- US26D & US10B (in stock flat lever) – US26D (in stocked Curved lever), Special Order US3 PVD, US4, US10B, US15, US26 PVD
- Fasteners- Combination screws for wood or metal doors & frames
- Warranty- Limited Lifetime Warranty
