30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Finish
Satin Chrome
Handing
Reversible
Function
Classroom
Cylinder Type
Conventional or IC
Trim Design
Escutcheon with Lever
Finish Description
Satin Chrome
Device Type
Rim or SVR
Lever Style
S-Lever
Product Type
Exit Device Trim
Series
Advantex Series
Warranty
10 YR LIMITED
Color Code
626/US26D
For Use With
10 Series Rim and 20 and 21 Series Surface Vertical Rods; BP1 and BP7
Hand
Reversible
ADA Compliant
No
Finish Family
Satin Chrome
Product Material
Forged Brass
Standards
ANSI/BHMA A156.3, Grade 1; California Title 19
Trim Style
Wide Stile
Cylinder Type Used
Mortise
Device Trim Function
Entrance by Knob or Lever; Key Locks or Unlocks Knob or Lever
Function Family
Classroom Exit Device Trim
Device Trim ANSI Function
08
Trim Plate Width
2-3/4 Inch
Trim Plate Height
9-1/16 Inch
Trim Plate Thickness
7/8 Inch
Features
Heavy-Duty; Break-Away Type Lever; Door Thickness Fits 1-3/4" - 2-1/4"
Manufacturer Parent
Detex
Lever Length-Inches
4-3/8 Inch
Lever Height
2-15/16 Inch
Sub-Series
08D-626
Product Overview

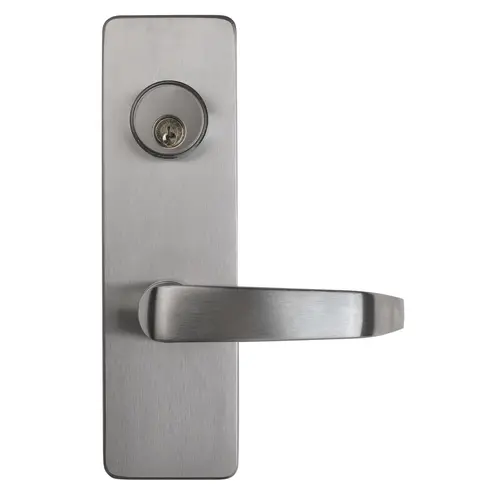

ADVANTEX - Wide StileLEVER TRIM DESIGNS
D Trim
BHMA Function/Description
Assorted outside trims provide security for all types of installations. Built to be as durable as the panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the trims, combined with the device mounting plate, makes changing functions as simple as replacing the outside trim. This can easily be done without removing the exit device from the door. Wide stile trims can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series Concealed Vertical Rod devices. Detex uses the BHMA functions/descriptions for all trims.
All Wide Stile Lever Trims come standard with a break-away type lever to prevent permanent damage from vandalism and abuse. Once the lever is forced past the locking point, the lever will drop down and appear broken. The internal disengaging clutch allows the lever to be reset by pulling it back to its original position. Anti-Microbial Coating (AM) is available on all levers - contact factory for lead time and details.
D Trim
- S Lever Standard
- D Trims are Forged Brass
BHMA Function/Description
- 08 - Entrance by knob or lever. Key locks or unlocks knob or lever.
