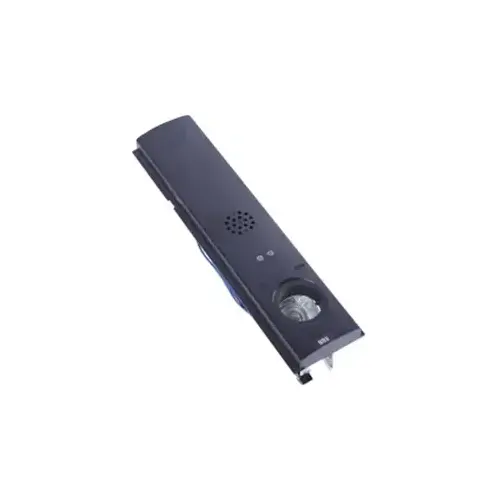

Weatherized Value Series Exit 48", Filler Plate with Built In EX-W - Request to Exit Assembly

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

DETEX 104287-4Click To Copy Weatherized Value Series Exit 48", Filler Plate with Built In EX-W - Request to Exit Assembly

Item #: 104287-4 by DETEX

See reviewsSee reviews
See reviews summary
In Stock

$307.23

/each
SAVE UP TO 30.72

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 15 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Alternate Part Number-1

170523

Product Overview

DETEX ValueSeries Electric Request to Exit Weatherized Switching (EX W)

The Weatherized Request to Exit (EX W) option, designed for outdoor gates and other wet environments, provides the customer with a means of signaling when the pushpad is depressed. This will open or close switch contacts (SPDT) and signal an alarm, remote strobe light or commence the cycle in a separate delayed egress system.

BENEFITS:

  • Priced to be the best value for panic exit hardware.
  • Provides reliable loss prevention protection 24-hours a day.
  • Rugged, weatherized and corrosion resistant for years of reliable service.
  • Angled end cap deflects damage away from device.
  • Integrates with other loss prevention equipment.
  • Large, steel reinforced pushpad with black ABS cover resists damage.
  • Fast and easy installation saves time and money.
  • Patented mounting plate and strike locator replaces paper templates.
  • Withstands over 1400 pounds of static pull force for greater security.
  • Fits almost any door in any décor.
  • Patented back plate and plastic strike locator designed for perfect alignment with door and frame without paper template.

    • FEATURES:

  • Stainless steel, 3/4" throw deadlocking latch bolt.
  • Tamper resistant switching electronically monitors pushpad.
  • Covers a 161 door prep.
  • Weatherized switch for signalling at low currents to a central control station.
  • Standard SPDT (Form C) switch with three wires, Yellow (N/O), Brown (Common) & Green (N/C), creating either a Normally Open or Closed contact.
  • Withstands environmental elements when installed on gates or exterior doors.
  • Fits 2" narrow stile doors with optional narrow stile door kit.
  • To shunt power to an electromagnetic lock, specify EXV W.
  • FC3W - Weatherized 3' Flex Conduit Kit, mounts to device end cap.

    • SPECIFICATIONS:

  • Door Types: Wood, Hollow Metal, Fiberglass or Aluminum.
  • Door Thickness: Fits standard 1-3/4" - 2-1/4".
  • Door Stile: Fits 2" narrow stile doors with 98 semi-mortise strike - Specify V40xNS.
  • Door Stile: Fits standard door with 99 surface strike (Std.)
  • Detex Limited Warranty: 10 Year Mechanical/3 Year Electrical Limited Manufacturer's Warranty.
  • Machine and Self Drilling Screws (Std.)

    • ACCESSORIES:

  • SN1: Sex Nut Fasteners.
  • KS: Key Stop - key removed only when armed.
  • NSK: Narrow Stile Conversion Kit - Converts V40 to fit narrow stile glass door applications.
  • SSK3: Security Screw Kit.
  • GTPLKIT: Adjustable Gate Plate.

    • MECHANICAL OPTIONS:

  • CD: Cylinder Dogging.
  • HD: Hex Dogging (Std.)
  • LD: Less Dogging.
  • F: 3-Hour Fire Rated.
  • H: Hurricane Rated.
  • 36: Fits 36" Door Width (Std.)
  • 48: Fits 48" Door Width.
  • 99: Surface Strike (Std.)
  • 98: Semi Mortise Strike.
  • 95: Double Door Strike.
  • RWE: Red pushpad with white lettering.
  • LF: Less Flex Conduit.
  • FC10W: Weatherized 10' Flex Conduit Kit, mounts to device end cap.
  • Available with 628 Base Rail Extrusion (Std.)
  • Available with 711 (Black) Base Rail Extrusion.
