DETEX ECL-230D-RC65 ECL-230D Exit Control Lock

Item #: ECL-230D-RC65 by DETEX

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$455.18

/each
SAVE UP TO 45.52
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Application

Single and Double Door

Hand

Non_Handed

Handing

Non-Handed

Warranty

10 Year Mechanical; 3 Year Electrical Limited

Keyway

Schlage C

Function

Exit Control Lock

Door Thickness

1-3/4" to 2-1/4"

Cylinder Type

Rim

Strike Type

ECL-437K Surface Strike

ADA Compliant

No

Included Components

9V Battery

Standards

UL Listed 988N-Grade 3; ADA; ANSI/BHMA Certified; California State Fire Marshall 4140-0127:102

Cylinder Type Used

Rim

Device Rating

Panic Exit Hardware

Function Family

Part/Component

For Door Width

20 Inch

Electrified Features

100 Decibel Alarm Powered by 9 Volt Battery

Features

Single Point, 1" Throw Dead Bolt; Short Bar; Saw Resistant Dead Bolt; Corrosion Resistant Alloy Lock Body; Resetting the Alarm can only be Accomplished With a Control Key

Product Type

Electronic Exit Device/Trim

Series

ECL Series

Door Material

Wood; Hollow Metal; Aluminum

Manufacturer Parent

Detex

Sub-Series

ECL-230D-RC65

Product Overview

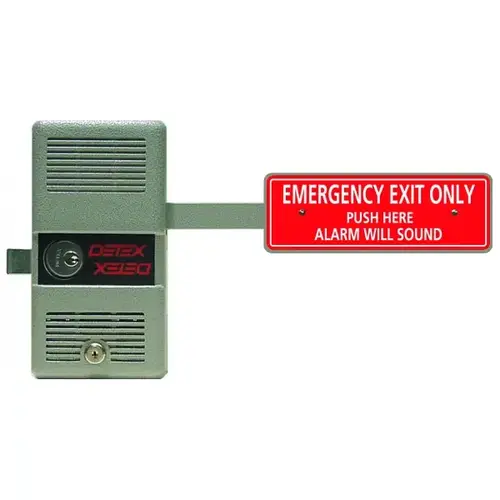

ECL-230D EXIT CONTROL LOCK

The ECL-230 is a code compliant, battery alarmed, rugged deadbolt, panic device with steel plate and photo-luminescent sign providing managed security and a 100 decibel alarm for secondary exits.


Product Features
  • Single point, 1" throw dead bolt
  • Saw resistant dead bolt
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • Resetting the alarm can only be accomplished with a control key
  • Non-handed
  • Locking and unlocking the dead bolt always arms and disarms the alarm

Technical Information
  • Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-230D is 20"
  • Machine and Sheet Metal Screws (Std.)

Detex Limited Warranty

10 Year Limited Manufacturers Warranty
