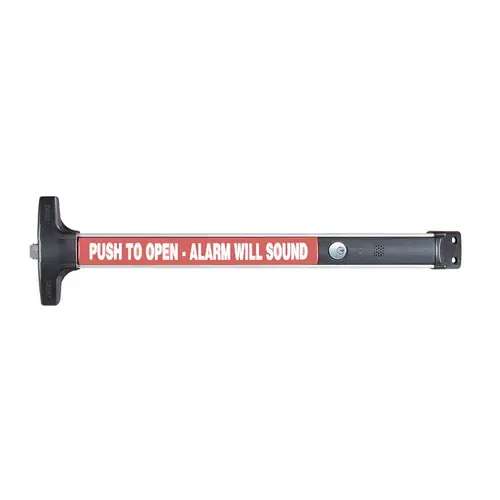

3' Rim Exit Device with Delayed Egress and Cylinder Dogging and Red and White Lettering Pushbar Aluminum Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

DETEX V40628EECD36RWEClick To Copy 3' Rim Exit Device with Delayed Egress and Cylinder Dogging and Red and White Lettering Pushbar Aluminum Finish

Item #: V40628EECD36RWE by DETEX

See reviewsSee reviews
In Stock

$1,746.99

/each
SAVE UP TO 174.70

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Application

Single and Double Doors With Mullions

Length

3 Foot Device

Hand

Non-Handed

Warranty

10 Year Mechanical; 3 Year Electrical Limited

Color Code

628/US28

Door Thickness

1-3/4" to 2-1/4"

Door Width

36 Inch (3 Foot)

Device Length

36 Inch (3 Foot)

Stile

Wide Stile

Latch Throw

3/4 Inch

Finish Description

Satin Aluminum

Device Type

Rim

Strike Number

99 Surface Strike

ADA Compliant

No

Finish Family

Aluminum

Standards

ANSI/BHMA Certified A156.3 - 2008 Grade 1 Type 1; UL Listed; ADA; UBC 97; Standard 7-2 and UL10B/UL10C for Positive Pressure; NFPA 80 and 101 for Life Safety; State of Florida Approval; California State Fire Marshall

Stile Width

4

Device Bar Projection

2-1/2" (Depressed); 3-1/4" (Extended)

Electrified Features

Delayed Egress

Features

Heavy Duty Ribbed Aluminum Rail Extrusion; High Impact Abs and Anodized Surfaces; Withstands Over 1400 Pounds of Static Pull Force; Modular Design Accepts a Variety of Outside Trims and Functions; Black Pushpad

Product Type

Electronic Exit Device/Trim

Series

V40 Series

Door Material

Wood; Hollow Metal; Fiberglass; Aluminum

Manufacturer Parent

Detex

Latchbolt Type

Deadlocking Pullman Type

Sub-Series

V40-628-EE-CD-36-RWE

Product Overview
3' Rim Exit Device with Delayed Egress and Cylinder Dogging and Red and White Lettering Pushbar Aluminum Finish
