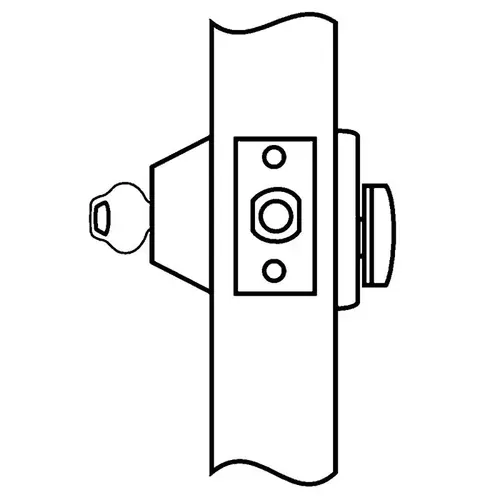

Corbin Russwin DL2213 626 B238 Single Cylinder Grade 2 Deadbolt with L4 Keyway and 2-3/8" Backset Bolt Satin Chrome Finish
Item #: DL2213 626 B238 by Corbin Russwin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handing: Non-handed.
- Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional: 2-3/8" (60mm)
- Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
- Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
- Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
- Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
- Warranty: One-year limited.
Thickness
1-3/4 In.
Package Volume
126
Color
Satin Chromium Plated
Function
13-Cylinder x Thumbturn Deadbolt
Latch Type
Deadbolt
Burglar Rated
No
Hand
Not Handed
Fire Rated
3 Hours {A}
Special Marks
Conventional cylinder, Fire rated 3 Hours {A}
Key(s)
Cut
Dust Box
None
Strike Width
1-1/8 In.
Latch Backset Dim
2-3/4 In.
Cylinder Type
Conventional
Package Qty
1
Package Height
4"
Screws
Combination
Keying
Keyed Different
Package Width
4"
Bolt Protection
1 In.
Color Code
626/US26D
Strike Type
Flat
Base Material
Brass or Bronze
Keyway
Corbin Russwin L4
Strike Height
2-3/4 In.
Package Length
7.875"
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch, 1 x 2-1/4 Inch, Square Corner
Finish Description
Satin Chrome
Keyblank Grouping
CRRS-L4-6-1
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Series
DL2200 Series
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Keying Charges
CCAM
Warranty
1 year limited
Door Thickness
1-3/4 inch
ANSI Function
E0150
ADA Compliant
No
Finish Family
Satin Chrome
Included Components
(2) Nickel Keys
Strike Size
2-3/4" x 1-1/8"
Cylinder Material
Brass
Standards
ANSI/BHMA A156.36 Certified; UL10B/UL10C
Cylinder Type Used
Conventional
Interior Lock Type
Thumbturn
Exterior Lock Type
Keyed
Front Size
2-1/4" x 1-1/8"
Function Family
Cylinder With Turn Deadbolt
Deadbolt Material
Steel
Deadbolt Throw
1 Inch
Manufacturer Parent
Assa Abloy
Sub-Series
CL_Deadbolt_Locks_corbin_russwin_22
Door Range
1-3/8" to 2-1/4"
Hazardous Material
No
Cross Bore Size
2-1/8" Bore
Product Overview
DL2200 SeriesDeadlocks
Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.
Specifications: Certification:- UL10B/UL10C Fire Rated Auxiliary Lock for A label and lesser class doors when used with a correspondingly rated primary latching device.
- ANSI/BHMA A156.36 Certified Grade 2
- Non-handed
- Standard: 1-3/4" (44mm)
- Standard: 2-3/4" (70mm)
- Standard: brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm)
- 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert
- Standard; 2-3/4" (70mm) x 1-1/8" (29mm)
- Standard: brass, 6-pin, L4 keyway, 0-bitted
- Two nickel silver standard
- Master keying
- Construction master keying
- Security
- Visual key control
- Concealed key control
- One-year limited
