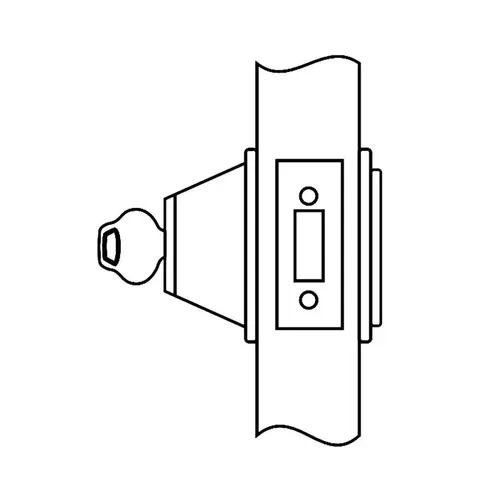

Corbin Russwin DL3011 605 LC DL3011 Cylinder x Blank Deadlock, Bright Polished Brass
Item #: DL3011 605 LC by Corbin Russwin
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handing: Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
- Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
- Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
Thickness
1-3/4 In. - 2-1/4 In.
Package Volume
63.75
Color
Bright Brass
Function
11-Cylinder x Blank Plate Deadbolt
Latch Type
Deadbolt
Burglar Rated
No
Hand
Not Handed
Fire Rated
No
Dust Box
None
Strike Width
1-1/8 In.
Latch Backset Dim
2-3/4 In.
Cylinder Type
Less Cylinder
Package Qty
1
Package Height
2.5"
Screws
Combination
Package Width
4.25"
Bolt Protection
1 In.
Color Code
605/US3
Strike Type
Standard
Base Material
Brass
Strike Height
2-3/4 In.
Package Length
6"
Finish
Bright Polished Brass
Grade
ANSI/BHMA Grade 1
Backset
2-3/4 Inch
Finish Description
Bright Polished Brass
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Series
DL3000 Series
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Warranty
1 year limited
Deadbolt Throw
1 Inch
Cylinder Type Used
Less Cylinder
Interior Lock Type
Blank
Exterior Lock Type
Keyed
Front Size
2-1/4" x 1-1/8"
Function Family
Blank Plate W/Thumbturn Deadbolt
Deadbolt Material
Zinc Diecast Hardened Steel Insert
ADA Compliant
No
Finish Family
Polished Brass
Strike Size
2-3/4" x 1-1/8"
Cylinder Material
Brass
ANSI Function
E0160
Manufacturer Parent
Assa Abloy
Sub-Series
CL_Deadbolt_Locks_corbin_russwin_32
Product Overview
DL3000 SeriesDeadlocks
Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.
Specifications: Handing:- Non-handed, except DL3017, which is handed and field reversible
- Standard: 1-3/4" (44mm) - 2-1/4" (57mm)
- Standard: 2-3/4" (70mm)
- Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm)
- Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
- Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high
- Standard; 2-3/4" (70mm) x 1-1/8" (29mm)
- Brass, 6-pin, L4 keyway, 0-bitted
- Two nickel silver standard
- Master keying
- Construction master keying
- 7-pin (FC) conventional
- Interchangeable core (IC)
- Security
- Security (IC)
- Visual key control
- Concealed key control
- Pyramid (FC)
- Pyramid (IC)
- One-year limited
