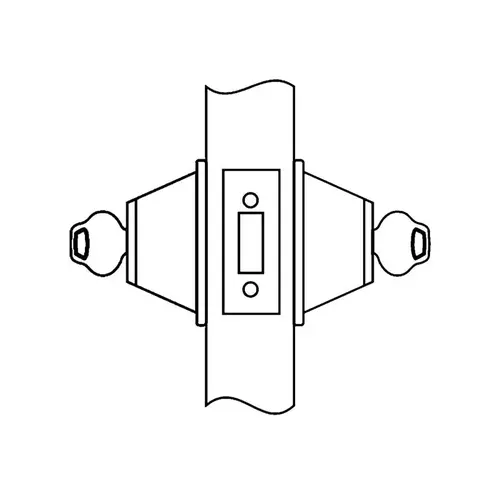

Corbin Russwin DL3012 606 CL6 B238 Deadlock Satin Brass

Item #: DL3012 606 CL6 B238 by Corbin Russwin

See reviewsSee reviews
See reviews summary

$401.40

/each
SAVE UP TO 40.14

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing: Non-handed, except DL3017, which is handed and field reversible.
  • Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
  • Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
  • Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
  • Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
  • Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
  • Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
  • Keys: Two nickel silver standard.
  • Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
  • Warranty: One-year limited.

Thickness

1-3/4 In. - 2-1/4 In.

Package Volume

63.75

Color

Satin Brass

Function

12-Double Cylinder Deadbolt

Latch Type

Deadbolt

Burglar Rated

No

Hand

Not Handed

Fire Rated

No

Special Marks

Full size/large format interchangeable core

Dust Box

None

Strike Width

1-1/8 In.

Latch Backset Dim

2-3/4 In.

Cylinder Type

Sargent LFIC Less Core

Package Qty

1

Package Height

2.5"

Screws

Combination

Package Width

4.25"

Bolt Protection

1 In.

Color Code

606/US4

Strike Type

Flat

Base Material

Brass

Strike Height

2-3/4 In.

Package Length

6"

Product Overview

Double Cylinder, Large Format Interchangeable Less Core, Satin Brass

Features Handing: Non-handed, except DL3017, which is handed and field reversible. Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes. Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm) Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high. Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes. Keys: Two nickel silver standard. Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC) Warranty: One-year limited.

The DL3000 Series is non handed and available in various finishes.
