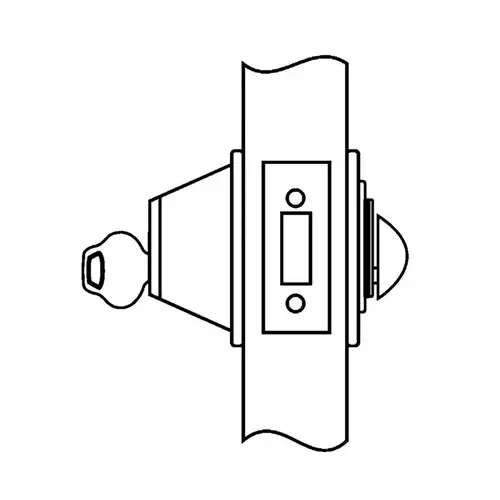

Corbin Russwin DL3013 625 CL6 DL3013 Single Cylinder Deadlock x IC, Bright Polished Chrome
Item #: DL3013 625 CL6 by Corbin Russwin
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Handing: Non-handed, except DL3017, which is handed and field reversible.
- Door Thickness: Standard - 1-3/4" (44mm) - 2-1/4" (57mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional - 2-3/8" (60mm)
- Front: Standard - wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Deadbolt: Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high.
- Strike: Standard - 2-3/4" (70mm) x 1-1/8" (29mm). Optional strikes and wrought boxes available
- Cylinder: Brass, 6-pin, L4 keyway, 0-bitted. Security cylinders optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available; Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
- Warranty: One-year limited.
Thickness
1-3/4 In. - 2-1/4 In.
Package Volume
63.75
Color
Bright Chrome
Function
13-Cylinder x Thumbturn Deadbolt
Latch Type
Deadbolt
Burglar Rated
No
Hand
Not Handed
Fire Rated
No
Special Marks
Full size/large format interchangeable core
Dust Box
None
Strike Width
1-1/8 In.
Latch Backset Dim
2-3/4 In.
Cylinder Type
Large Format Interchangeable Core, Less Core
Package Qty
1
Package Height
2.5"
Screws
Combination
Package Width
4.25"
Bolt Protection
1 In.
Color Code
625/US26
Strike Type
Standard
Base Material
Brass or Bronze
Strike Height
2-3/4 In.
Package Length
6"
Finish
Bright Polished Chrome
Grade
ANSI/BHMA Grade 1
Backset
2-3/4 Inch
Finish Description
Bright Polished Chrome
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Series
DL3000 Series
Strike
Deadbolt, 1-1/8 Inch x 2-3/4 Inch, Square Corner
Strike Size
2-3/4" x 1-1/8"
Interior Lock Type
Thumbturn
Exterior Lock Type
Keyed
Manufacturer Parent
Assa Abloy
ANSI Function
E0150
Sub-Series
CL_Deadbolt_Locks_corbin_russwin_36
ADA Compliant
No
Front Size
2-1/4" x 1-1/8"
Deadbolt Throw
1 Inch
Deadbolt Material
Zinc Diecast Hardened Steel Insert
Function Family
Cylinder With Turn Deadbolt
Cylinder Material
Brass
Warranty
1 year limited
Included Components
(2) Nickel Keys
Cylinder Type Used
Large Format Interchangeable Core, Less Core
Finish Family
Polished Chrome
Product Overview
DL3000 SeriesDeadlocks
Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.
Specifications: Handing:- Non-handed, except DL3017, which is handed and field reversible
- Standard: 1-3/4" (44mm) - 2-1/4" (57mm)
- Standard: 2-3/4" (70mm)
- Standard: wrought brass or bronze, 2-1/4" (57mm) x 1-1/8" (29mm)
- Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm)
- Zinc diecast hardened steel insert. 1" (25mm) throw, 5/8" (16mm) wide x 3/4" (19mm) high
- Standard; 2-3/4" (70mm) x 1-1/8" (29mm)
- Brass, 6-pin, L4 keyway, 0-bitted
- Two nickel silver standard
- Master keying
- Construction master keying
- 7-pin (FC) conventional
- Interchangeable core (IC)
- Security
- Security (IC)
- Visual key control
- Concealed key control
- Pyramid (FC)
- Pyramid (IC)
- One-year limited
