DL4160 Thunbturn x Blank Deadlock, Satin Chrome

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

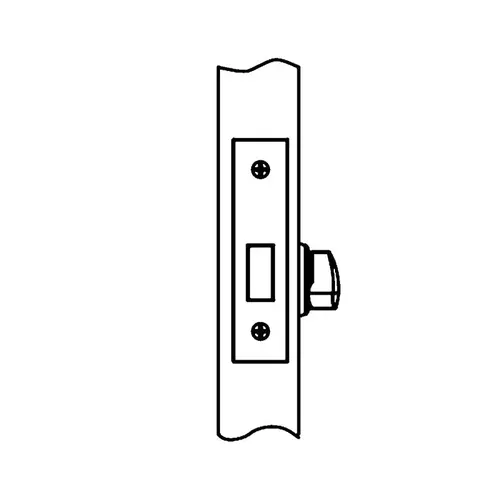

Corbin Russwin DL4160 625 DL4160 Thunbturn x Blank Deadlock, Satin Chrome

Item #: DL4160 625 by Corbin Russwin

See reviewsSee reviews
See reviews summary

$314.29

/each
SAVE UP TO 31.43
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Handing: Non-handed.
  • Door Thickness: Standard- 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
  • Backset: 2-3/4" (70mm).
  • Lockcase: Heavy wrought steel; zinc dichromate finish.
  • Front: Brass, bronze, stainless steel. 4-5/8"(117mm) x 1-1/8" (29mm). Adjustable for flat or beveled doors (bevel adjustment 1/8"(3mm) in 2"(51mm).
  • Deadbolt: Steel with hardened pin; 1" (25mm) throw.
  • Strike: Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm). Optional strikes available.
  • Cylinder: 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
  • Keys: Two nickel silver standard.
  • Keying Features Available: Master keying; Construction master keying; 7-pin (FC) conventional; Interchangeable core (IC); Security; Security (IC); Visual key control; Concealed key control; Pyramid (FC); Pyramid (IC)
  • Warranty: One-year limited.

Thickness

1-3/4 In.

Package Volume

63.75

Color

Satin Chrome

Function

60-Thumbturn x Blank Deadbolt

Latch Type

Deadbolt

Burglar Rated

No

Hand

Not Handed

Fire Rated

3 Hours {A}

Special Marks

Fire rated 3 Hours {A}

Dust Box

None

Strike Width

1-1/8 In.

Latch Backset Dim

2-3/4 In.

Package Qty

1

Package Height

2.5"

Screws

Combination

Package Width

4.25"

Bolt Protection

1 In.

Color Code

625/US26

Strike Type

Flat

Base Material

Brass or Bronze

Strike Height

3-1/2 In.

Package Length

6"

Finish

Bright Polished Chrome

Grade

ANSI/BHMA Grade 1

Backset

2-3/4 Inch

Strike

Deadbolt, 1-1/8 Inch x 3-1/2 Inch, Square Corner

Finish Description

Bright Polished Chrome

Rose/Escutcheon Trim

Round Rose

Product Type

Auxiliary Lock

Series

DL4100 Series

Warranty

1 year limited

Door Thickness

1-3/4 inch

ADA Compliant

No

Finish Family

Polished Chrome

Standards

UL Listed

Interior Lock Type

Thumbturn

Exterior Lock Type

Blank

Function Family

Blank Plate W/Thumbturn Deadbolt

Features

Lockcase: Heavy Wrought Steel; Zinc Dichromate Finish

Manufacturer Parent

Assa Abloy

Sub-Series

CL_Deadbolt_Locks_corbin_russwin_54

Product Overview
DL4100 SeriesDeadlocks

Corbin Russwin Auxiliary Locks provide security for a wide range of applications. Our auxiliary and special purpose locks including padlocks and deadlocks allow end users to meet specific security needs.

Specifications: Certification/Compliance:
  • UL Listed for use on fire doors
Handing:
  • Non-handed
Door Thickness:
  • Standard: 1-3/4" (44mm)
Backset:
  • 2-3/4" (70mm)
Lockcase:
  • Heavy wrought steel; zinc dichromate finish
Front:
  • Brass, bronze, stainless steel
  • 4-5/8" (117mm) x 1-1/8" (29mm)
  • Adjustable for flat or beveled doors (bevel adjustment 1/8" (3mm) in 2" (51mm)
Deadbolt:
  • Steel with hardened pin; 1" (25mm) throw
Strike:
  • Standard: wrought brass or bronze, 3-1/2" (89mm) x 1-1/8" (29mm)
Cylinder:
  • 6-pin, L4 keyway, 0-bitted
Keys:
  • Two nickel silver standard
Keying Features Available:
  • Master keying
  • Construction master keying
  • 7-pin (FC) conventional
  • Interchangeable core (IC)
  • Security
  • Security (IC)
  • Visual key control
  • Concealed key control
  • Pyramid (FC)
  • Pyramid (IC)
Warranty:
  • One-year limited
