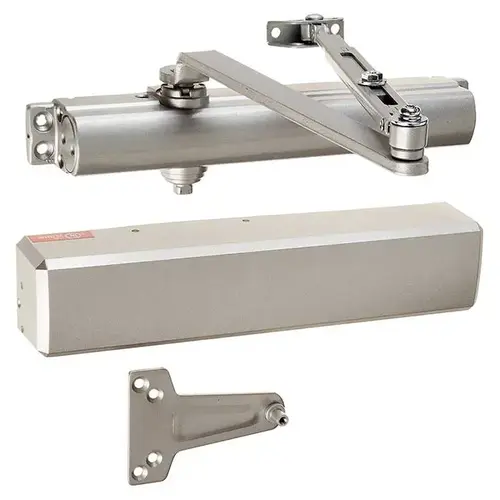

Stanley Security Door Closer with Full Cover Aluminum Finish
Item #: QDC311 F 689 by Stanley Security Solutions
Brand: Stanley Security
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Door Closer With Tri-Pack Arm And Non-Hold Open. Cast Aluminum. Non-Handed. All Weather Fluid. Adjustable From Sizes 1 - 6. Full Size Cover. Delayed Action And Back Check Standard
- Comes with a lifetime mechanical warranty and a three-year warranty on finish.
- BHMA/ANSI Grade 1 certified, significantly exceeds performance requirements, and are fully adjustable with a barrier-free option to meet ADA requirements.
- Premium performance options like delayed action and a back check valve come standard with the QDC300 series.
Finish
689 - Aluminum
Function
Regular
Series
QDC300 Series
Color
Aluminum Painted
Color Code
689/US28
Warranty
3 Year Finish & Lifetime Mechanical
Spring Size
Adjustable 1-6
Product Material
Cast Aluminum
Closer Cover
Full Plastic Cover
Standards
BHMA/ANSI Grade 1
Product Type
Door Closer/Holder/Stop
Manufacturer Parent
DormaKaba
Sub-Series
QDC311-F-689
Dimension
2-3/5" x 3" x 9-4/5"
Material
Cast Aluminum
Mounting Style
Regular, Top Jamb, and Parallel Mounting
Hold Open
No
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and 3 Year Finish Warranty
UL Listing Type
ANSI/BHMA A156.4; ANSI A117.1; UL/cUL listed; UL10c; UL10b
Closer Type
Surface Mounted Closer
Hazardous Material
No
Finish code
689
No of inners
1
Mounting Hole Pattern
3/4" x 9-1/16" Rectangular Mounting
Door Handing
Non-Handed
Duty Level
Medium Duty
Grade
Grade 1
Options
None
Cover
Full-Size Cover
Fasteners
Wood and Machine Screws Standard, Sex Nuts and Self-Reaming, Self-Tapping Screws Standard
Door Width
30" to 48" (Interior); 32" to 48" (Exterior)
Mounting Location
Pull Side/Push Side
Door Thickness Range
1-3/4"
ANSI/BHMA Standards
ANSI/BHMA A156.4; ANSI A117.1; UL/cUL listed; UL10c; UL10b
Closer Size
1 to 6
Product Overview
Grade 1 Door Closer, Tri-Pack Arm, Full Size Cover, Aluminum
Combines a slim design and small footprint with proven durability, making it a great choice for even the narrowest full glass doors.
The smaller, narrower footprint of Stanley's QDC300 series makes it compatible with even the narrowest top rail doors. The QDC300 series includes many premium design components standard, and with a wide range of available options and customizable features, these door closers provide flexible value without compromising quality.
