This Dormakaba Walking Beam Top Pivot is a center-hung pivot that allows for adjustment in door clearance and door removal by raising or lowering the pivot pin. Designed to work with CRL Wedge-Lock Door Rail Systems or any center-hung application where the top door rails have a depth of 1" (25 mm) and can accept a pivot pin diameter of 15 mm (19/32"). The pin can be adjusted to have up to a 3/4" clearance. This is the walking beam top pivot portion only and will fit any standard aluminum, hollow metal or wood header. For the top door portion, see Cat. No. 8062DA and for finished cover, see Cat. No. 8062COVAL or 8062COVDU.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

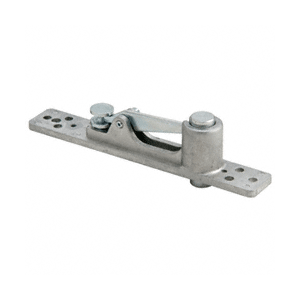

DORMA 8062TP kaba 15mm Walking Beam Top Pivot
Item #: 8062TP by Dorma
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- For Center-Hung Applications When Using with a Concealed Floor Mounted Door Closer or Floor Mounted Pivot
Shipping Weight
2 lb (907g)
Brand
Dormakaba
Pin Diameter
19/32
Pivot Type
Center Hung
Recommended Door Type
Aluminum, Wood, Hollow Metal
Pivot Top
Yes
Adjustable Spindle Length (Inches)
5/8
Bottom Door Rail Depth (Inches)
1
Handing
Non Handed
Bottom Door Rail Depth
1
Adjustable Spindle Length
5/8
Product Overview
This Dormakaba Walking Beam Top Pivot is a center-hung pivot that allows for adjustment in door clearance and door removal by raising or lowering the pivot pin. Designed to work with CRL Wedge-Lock Door Rail Systems or any center-hung application where the top door rails have a depth of 1" (25 mm) and can accept a pivot pin diameter of 15 mm (19/32"). The pin can be adjusted to have up to a 3/4" clearance. This is the walking beam top pivot portion only and will fit any standard aluminum, hollow metal or wood header. For the top door portion, see Cat. No. 8062DA and for finished cover, see Cat. No. 8062COVAL or 8062COVDU.
