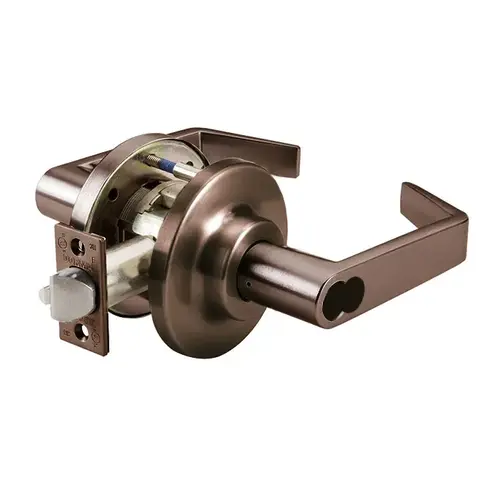

DORMA C853-R-LRE-613 C853 Entry Lever Lockset Schlage LFIC, Oil Rubbed Dark Bronze

C800 SeriesGrade 1 Heavy-Duty Cylindrical Locksets

Exceptional security, enhanced aesthetics, and rugged dependability.
These premium locks are built with a high performance cylindrical chassis for all applications where ANSI/BHMA A156.2 Series 4000 Grade 1 products are required. To meet the aesthetic needs of your project, these versatile locks are available in a range of trim designs.

Features:

• DORMA C800 Series locks feature advanced design concepts for extreme reliability and are manufactured with the finest materials for exceptional durability.

• For exceptionally smooth operation, C800 Series lever locks incorporate a cast stainless steel retractor combined with roller bearings.

• This design provides both extremely high strength and an extended service life for the lock mechanism. All steel parts are zinc dichromate plated.

• C800 Series locks are easy to install in both wood and hollow metal doors with ANSI/BHMA Standard A156.115 preparations for cylindrical locks.

• C800 Series lever locks are through-bolted for additional strength and reliability.

• C800 Series lever locks are available with two rose designs, C or the stepped E.

• C800 Series operating lever trim features a specially designed freewheeling function to protect the lock from damage caused by excessive torque applied to the lever handles. When locked, the outside lever handle will move freely through a 60° arc without operating the latch bolt. This free movement minimizes the opportunity for damage to the lock mechanism.

• C800 Series lever locks include a special, high-strength spring and positive stop to eliminate unsightly sagging levers.

• C800 Series lever locks are easily adjustable to accommodate doors from 1-3/4"–2-1/4" thick without spacers (1-3/8"–1-5/8" with spacers 660005). Consult the factory for other thicknesses.

• C800 Series knob locks will accommodate doors from 1-3/8"–2" thick without spacers or special tools.

Recommended Applications:

• Schools and Universities

• Hotels

• Apartments

• Hospitals and Nursing Homes

• Churches

• Municipal Buildings

• Airports

• Retail Complexes

• Offices

• Warehouses

Technical Details:

• Non-handed for simple installation (excluding LF or LV handed levers).

• Key-in-lever lock is through-bolted for additional strength and security.

• Cast stainless steel latch retractor with roller bearings for exceptionally smooth operation and superior strength and durability.

• Lock chassis constructed of steel, stainless steel and zinc components for superior strength and corrosion resistance.

• Stainless steel latch bolt.

• Auxiliary deadlocking latch bolt.

• Premium PVD (physical vapor deposition) finishes for consistent durable color.

• Accepts standard and interchangeable core cylinders.

Certification:

• ANSI/BHMA A156.2 Grade 1 certified.

• Tested to 3.5 million cycles by an independent laboratory.

• Meets A117.1 accessibility code and ADA requirements for barrier-free accessibility.

• UL listed 3 hour fire rated. Locks with 1/2" throw latch bolts are listed for A label and lesser class doors, 4'0" × 8'0" maximum per leaf.

• California State Fire Marshall approved (CSFM).

Cylinders and Keying:

• Unless otherwise specified, cylinders will be provided in Schlage C keyway with two (2) nickel silver keys.

• Optional patented key system available.

• Refer to separate DORMA Price List for full details and options such as master keying, retrofit cylinders and keyways, and small format and full size interchangeable cores.

Finishes: Brass:

• 605* (Bright, Clear Coated)
• 605 PVD (Bright)
• 606 PVD (Satin)

Bronze:

• 612 PVD (Satin)
• 613 PVD (Dark Oxidized Satin)

Nickel:

• 619 PVD (Satin)

Chrome:

• 625 (Bright)
• 626 (Satin)

Stainless:

• 630* (Satin)

Black:

• 622* (Satin)

• *Available on knob locksets only. NOTE: Consult factory for finishes not shown.
• Antimicrobial Protected Coating Specify AM.

Special Finish Notes:

• ANSI/BHMA A156.18 standards describe 613 Dark Oxidized Satin Bronze finish as a category B finish.

• B category finishes, "do not match from one alloy or form of material to the next and from one manufacturer to the next."

• The 613 finish may vary between manufacturers' products and models.

• In some instances, for customer convenience, the most appropriate BHMA finish symbols are used to indicate similarity of appearance, regardless of base metal or finishing process.

• Finishes of latches, strikes, cylinders/cores, and visible mounting screws, though similar in appearance, may differ from the finish of the trim.

• Finish designations in the 600 numbers are the BHMA (Builders Hardware Manufacturers Association) industry standard.

Security Screws:

• Tor x® tamper-resistant screws are available for all exposed screws. Specify TX.

Warranty:

• For details, refer to DORMA Limited Warranty on our website at go.dorma.com/terms.

Functions: C801 - Dummy TrimOne Side:

• Used as pull or matching trim on pairs of doors.
• For wood or custom hollow metal doors.
• Trim is surface mounted.

C802 - Dummy TrimTwo Sides:

• Used as pull or matching trim on pairs of doors.
• For wood or custom hollow metal doors.
• Trim through-bolted.

C810 - Passage/Closet:

• Latch bolt operated by trim either side at all times.

C812 - Exit:

• Deadlocking latch bolt operated by inside trim.
• Outside trim always rigid.
• Inside trim always unlocked.

C825 - Exit/Communicating Passage:

• Deadlocking latch bolt operated by inside trim.
• Blank plate outside.
• Minimum clearance 1" on single doors and 2" between double doors.

C830 - Patio:

• Deadlocking latch bolt operated by trim either side.
• Outside trim locked by push button or locking device inside.
• Outside trim unlocked by trim inside.
• Outside trim unlocked by closing door.
• Inside trim always operates latch bolt.
• Do not use in rooms that have no other entrance.

C840 - Privacy, Bedroom or Bath:

• Latch bolt operated by trim either side.
• Outside trim locked by push button or locking device inside.
• Outside trim unlocked by emergency release outside.
• Outside trim unlocked by closing door.
• Outside trim unlocked by closing door.
• Inside trim always operates latch bolt.

C844 - Hospital Privacy:

• Latch bolt operated by trim either side.
• Outside trim locked by push button or locking device inside.
• Outside trim unlocked by emergency release outside.
• Outside trim unlocked by trim inside.
• Outside trim unlocked by closing door.
• Inside trim always operates latch bolt.

C844 - Hospital Privacy:

• Latch bolt operated by trim either side.
• Outside trim locked by push button or locking device inside.
• Outside trim unlocked by emergency release outside.
• Outside trim unlocked by trim inside.
• Outside trim unlocked by closing door.
• Inside trim always operates latch bolt.

C848 - Exit/Communicating Storeroom:

• Deadlocking latch bolt operated by key in trim.
• Trim always inoperable.
• Blank plate outside.
• Minimum clearance 1" on single doors and 2" between double doors.

C850 - Entry/Office:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by push button inside.
• Key outside releases push button, unlocking outside trim.
• Operating inside trim releases push button, unlocking outside trim.
• Closing door does not release push button.
• Inside trim always operates latch bolt.

C853 - Entry:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by push button inside.
• Key outside releases push button, unlocking outside trim, except when inside button pushed and turned to keep outside trim locked.
• Operating inside trim releases push button, unlocking outside trim, except when inside button pushed and turned to keep outside trim locked.
• Inside button must be turned to unlock outside trim.
• Inside trim always operates latch bolt.

C855 - Service Station:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by push button inside.
• Key outside, operating inside trim, or closing door releases push button, unlocking outside trim, except when slotted push button fixed in locked position by turning inside trim coin slot.
• Slotted inside button must be manually released.

C860 - Apartment:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by key inside.
• When outside trim locked, latch bolt retracted by key outside.
• When outside trim locked, latch bolt operated by trim inside.

C865 - Exit/Communicating Classroom:

• Deadlocking latch bolt operated by trim.
• Key locks or unlocks trim.
• Blank plate outside.
• Minimum clearance 1" on single doors and 2" between double doors.

C866 - Store Door:

• Deadlocking latch bolt operated by trim either side.
• Key in either trim locks or unlocks both trims.

C870 - Classroom:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by key outside.
• Outside trim locked or unlocked by key outside.
• Inside trim always operates latch bolt.

C872 - Communicating:

• Deadlocking latch bolt operated by trim either side.
• Turning key in trim locks, or unlocks, its own trim independently.
• Do not use on doors in rooms that have no other exit.

C873 - Corridor:

• Deadlocking latch bolt operated by trim either side, except when outside trim locked by key outside, or when outside trim locked by push button inside.
• Outside trim locked or unlocked by key outside.
• Operating inside trim or closing door releases push button.
• Inside trim always operates latch bolt.

C877 - Classroom Intruder:

• Deadlocking latch bolt operated by trim either side.
• Key in either trim locks or unlocks outside trim.
• Inside trim always operates latch bolt.

C880 - Storeroom:

• Deadlocking latch bolt retracted by key outside.
• Deadlocking latch bolt operated by trim inside.
• Outside trim always inoperable.

C880EL - Electrically Locked Fail Safe:

• Outside trim locked when power is on.
• Outside trim unlocked when power is interrupted.
• Deadlocking latch bolt retracted by key outside.
• Inside trim always operates latch bolt.

C880EU - Electrically Unlocked Fail Secure:

• Outside trim unlocked when power is on.
• Outside trim locked when power is interrupted.
• Deadlocking latch bolt retracted by key outside.
• Inside trim always operates latch bolt.

C882 - Asylum:

• Deadlocking latch bolt retracted by key either side.
• Both trims always rigid.

C885 - Faculty Restroom/ Hotel:

• Deadlocking latch bolt operated by trim inside at all times.
• Outside trim always inoperable.
• Latch bolt retracted by key outside and lever inside, except when push button inside activates visual occupancy indicator in cylinder face, allowing only emergency master key to operate.
• Operating inside lever or closing door releases visual occupancy indicator.
• Rotating inside spanner button provides lock out feature by keeping visual occupancy indicator thrown. Released by lock out tool only (tool provided).
• Faculty Restroom/Hotel function available in SC and SE Keyway only.
• Not available in SFIC or prepared for competitor cylinders.

Electromechanical Options: Electromechanical Functions:

• Electrically locked (fail safe).
• Electrically unlocked (fail secure).

Electrical Requirements for Solenoid Functions: Voltage:

• 24 VDC regulated, filtered.

Current:

• 0.145 A.

• UL and CUL listed for use on fire doors.

• Solenoids are rated for continuous duty.

• Repeated operation at voltage exceeding +/–10% is not recommended.

Recommended power supply:

• DORMA PS610RF

Monitoring Options: RX:

• Request-to-exit signaling switch.

Voltage:

• 250 VAC.

Current Rating:

• 1 A.

Wire Leads:

• 22 AWG.

• A microswitch attached to chassis is activated by inside lever. The switch signals the lever use to security, allowing a means of immediate egress

Available on the following functions:

• C810, C850, C853, C870, C880, C880EL, C880EU.

• When ordering specify RX. Example: C880EURX.

• CAUTION: Not recommended for use on doors used for Life Safety egress.
