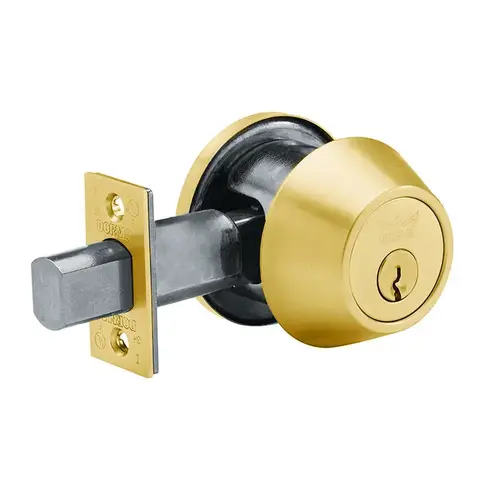

DORMA D862D-605-KDClick To Copy D860 Series Grade 1 Dead Bolt, Bright Polished Brass

D800 SeriesGrade 1 Heavy-Duty Dead Bolts

Providing increased security, reliability, and durability.
DORMA offers a choice of rugged dead bolts to provide an added level of protection. The D800 Series are Grade 1 dead bolts available in both 2-3/8" and 2-3/4" (standard) backsets. The large dead bolt is made from stainless steel for strength and corrosion resistance. A Heavy-Duty brass cylinder in a hardened steel housing surrounded by a heavy steel spin ring complete the security package in the door. This is coupled with a solid steel strike for use in a hollow metal frame and an additional reinforcing plate with 3" screws for wood jamb installations. All of these features provide an exceptionally strong and secure dead bolt. All steel parts are zinc dichromate plated.

Recommended Applications:

• Schools and Universities

• Hotels

• Apartments

• Hospitals and Nursing Homes

• Churches

• Municipal Buildings

• Airports

• Retail Complexes

• Offices

• Warehouses

Technical Details:

• Hardened steel housing for superior protection against blunt force attack.

• Large steel spin ring for protection against attack by wrenching and prying.

• (2) 1/4-28 high strength steel mounting screws for protection against prying.

• Available in all DORMA SKC keyways in both Small Format Interchangeable Core (SFIC) and standard cylinders. Also available in many Best keyways as well as Schlage C and E, Sargent LA, and many others. Consult factory for additional keyways.

• Strike reinforcement with 3" wood screws for wooden jambs provides increased resistance to kick-in attack.

Certification:

• Certified to the requirements of ANSI/BHMA A156.36
  Grade 1.

• UL/CUL – UL 10C Positive Pressure Listed 3 hour fire rated.

Cylinders and Keying:

• Unless otherwise specified, cylinders will be provided in Schlage C keyway with two (2) nickel silver keys.

• Optional patented key system available

• Refer to DORMA Price List for full details and options such as master keying, retrofit cylin-ders and keyways, and small format interchangeable cores.

Warranty:

• For details, refer to DORMA Limited Warranty on our website at go.dorma.com/terms.

Finishes: Brass:

• 605 (Bright) or 606 (Satin).

Bronze:

• 612 (Satin) or 613 (Dark Oxidized Satin).

Nickel:

• 619 (Satin)

Chrome:

• 625 (Bright) or 626 (Satin).

• Antimicrobial Protected Coating Specify AM.

Special Finish Notes:

• ANSI/BHMA A156.18 standards describe 613 Dark Oxidized Satin Bronze finish as a category B finish. B category finishes, “do not match from one alloy or form of material to the next and from one manufacturer to the next.” The 613 finish may vary between manufacturers’ products and models.

• In some instances, for customer convenience, the most appropriate BHMA finish symbols are used to indicate similarity of appearance, regardless of base metal or finishing process. Finishes of latches, strikes, cylinders/cores, and visible mounting screws, though similar in appearance, may differ from the finish of the trim. Finish designations in the 600 numbers are the BHMA (Builders Hardware Manufacturers Association) industry standard.

Door Preparation:

• 2-1/8" or 1-1/2" diameter mounting hole.

Security Screws:

• Torx® tamper-resistant screws are available for all exposed screws. Specify TX.

Features:

• Inside Turn ADA Compliant

• Projection: 1-7/32"

• Heavy duty thumb turn

• Heavy duty 1" stainless steel throw dead bolt

• Solid steel security ring with brass or bronze cover

• Steel security shield

• Hardened housing

• Heavy duty brass cylinder

Functions: D860 - Cylinder × Turn:

• Dead bolt operated by key outside or by turn inside.
• Bolt automatically deadlocks when fully thrown.

D861 - Cylinder × Blank Plate:

• Dead bolt operated by key one side.
• Blank plate on other side.
• Bolt automatically deadlocks when fully thrown.

D862 - Cylinder × Cylinder*:

• Dead bolt operated by key either side.
• Bolt automatically deadlocks when fully thrown.

D863 - Cylinder × Classroom:

• Dead bolt operated by key outside.
• Turn retracts dead bolt but does not project it.
• Bolt automatically deadlocks when fully thrown.

D871 - Turn × Occupancy Indicator:

• Dead bolt operated by turn inside.
• Occupancy indicator on outside reads either VACANT or OCCUPIED in color coding.
• Coin turn for emergency access on outside.
• Bolt automatically deadlocks when fully thrown.

D880 - Turn × Blank Plate:

• Dead bolt operated by turn inside. Blank plate on other side.
• Bolt automatically deadlocks when fully thrown.

D881 - Turn Only:

• Dead bolt operated by turn inside. No trim on outside.
• Bolt automatically deadlocks when fully thrown.

D882 - Turn × Turn (Windstorm):

• Dead bolt operated by turn either side.
• Bolt automatically deadlocks when fully thrown.

• * CAUTION: Double cylinder locks used on residences and any door in a structure which is used on residences, and any door in a structure which is used for egress are a life safety hazard in times of emergency; their use is not recommended. Installation should be in accordance with existing codes only.
