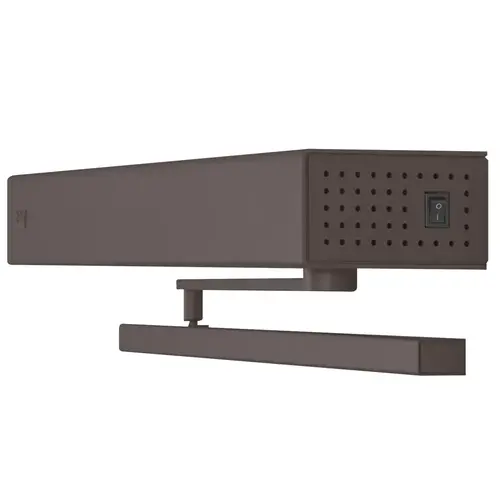

DORMA ED900-T-SW-695 Door Operators Dark Bronze Painted
Item #: ED900-T-SW-695 by Dorma
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Dark Bronze Painted
Function
Pull Side Operator
Mount
Pull Side
Finish Description
Dark Bronze Painted
Healthy Solution
Touchless
Product Type
Door Operator
Series
ED900 Series
healthy_solution
Touchless
Manufacturer Parent
DormaKaba
Closer Arm Type
Slide Track Arm
Power Input
115VAC
Sub-Series
DC_Power_Operators_dorma_5
ADA Compliant
YES
Mounting Type
Pull Side
Function Family
Power Door Operator
Power Output
24VDC
Standards
ANSI/BHMA 156.19; UL and CUL; ICC/ANSI A117.1; ANSI/UL 325
Voltage
120 volt
Features
Advanced Power Assist; Fully ADA Compliant; Blow-Open; Permanent Hold-Open; Small Footprint
Current Draw
6.6A
Minimum Door Width
29 Inch
Warranty
2 Year Limited Warranty
For Door Width
29" to 48"
Finish Family
Dark Bronze
Color
Dark Bronze Painted
Color Code
695
Fire Rated
Yes {Variable}
Product Overview
Grade 1 Low Energy Surface Mounted Electromechanical Door Operator, Slide Track Arm Standard, Pull Side Mounted, Up to 48" Door, Standard Width Cover, 110 Deg. Powered, 180 Deg. Manual Swing, Dark Bronze Painted Finish
Employing an innovative electromechanical drive and a state-of-the-art microprocessor motion control system, the ED900 is DORMA's most advanced low-energy swing door power operator. The operator is exceptionally quiet, safe, and easy to use.
