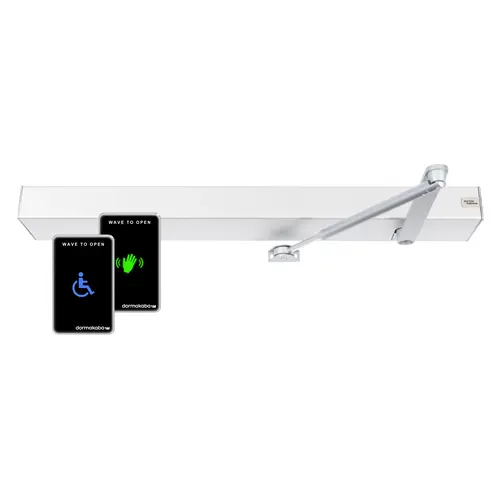

Dormakaba DS467001A One Box Touchless Kit with 2 - 910TC Wave Plate Actuators and ED50 Push Side Auto Operator Clear Anodized Aluminum Finish
Item #: DS467001A by Dorma
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Voltage
115 Volt
Power Output
24VDC
Mounting Type
Push Side
Warranty
1 Year
Function
Push Side Operator
Mount
Push Side
Current Draw
0.9A
Finish Description
Aluminum Painted
ADA Compliant
YES
Finish Family
Aluminum
Power Input
115VAC
Standards
ANSI/BHMA A156.19; ADA
Closer Arm Type
Regular Arm
Function Family
Power Door Operator
For Door Width
28" to 48"
Features
Advanced Power Assist; Blow Open Feature for Smoke Ventilation; Unique Low Profile Touchless Actuator Plate Utilizing Capacitive Technology for the Activation of Automatic Doors
Product Type
Door Operator
Door Opening Range
Up To 110°
Manufacturer Parent
DormaKaba
Minimum Door Width
28 Inch
Frame Reveal
0" to 8-3/4"
healthy_solution
Touchless
Sub-Series
DC_Power_Operators_dorma_1
The ED50 low energy swing door operator is the perfect solution for barrier-free access applications, offering a true manual door closer experience. Simple and easy to install, the ED50 provides many features and functions to make existing doors easily accessible.
This medium-duty swing door operator can automate new or existing swing doors with a push plate, wave plate, or other "knowing act" device. The ED50 combines advanced automatic power assist, minimal push forces (as low as ANSI size 1) and reliable closing. Outswing or inswing doors can be adapted for barrier-free access with push, pull, or deep reveal arms suited to a wide variety of door hanging options.
Operator Types and Configurations: 4" x 6" Narrow Header:- Surface applied
- Overhead concealed
- Surface applied
- 4" x 6" x length as required (Narrow)
- 2-3/4" x 5-1/8" x length as required (Fine)
- 26.5 lb
- 24 volts DC ± 5% 1.5 A
- 110° (door stop recommended)
- 16 AWG
- 220 lb at 48" door width
- Minimum 28"
- Maximum 48"
- 13/16" (20 mm)
- 1-3/16" (30 mm)
- 2-3/8" (60 mm)
- 1-3/16" (30 mm)
- 2-1/4"
- 0 to 9-3/4"
- 8" to 19-3/4"
- 5°F to 122°F
- Relative air humidity
- Maximum 93%, non-condensing
- 115 volts AC ± 10%, 50/60 HzMaximum 6.6 A
- Maximum 15 Amps,dedicated branch circuit
- NEMA 1
- Maximum 12 AWG
- Maximum 50 db(A)
- X4*
- Interior, exterior
- Normally open contact
- X5
- Swing, approach sides, normally closed contact
- X10 - 57, 57a
- 8 to 24 volts DC/volts AC + 5%
- X1 - 35, 3
- d2 - parameter
- Configure for Normally Open or Normally Closed
- X6 - 4, 4a
- d1 - parameter
- Configure for Normally Open or Normally Closed
- Door opens automatically following pulse generation by a knowing act device or by push/pull.
- Designed for doors primarily accessed manually.
- Available only in door closer mode, manual opening drive support is automatically adjusted to operator size.
- dd - parameter
- 0 to 30 seconds
- dn - parameter
- 0 to 30 seconds
- do - parameter
- 0 to 30 seconds
- hd - parameter
- Automatic, manual door modes
- Ud - parameter
- 0 to 4 seconds
- Fo - parameter
- Minimum 20 lbf (4.5)
- Maximum 60 lbf (13.5.5)
- Fc - parameter
- Minimum 20 lbf (4.5)
- Maximum 60 lbf (13.5.5)
- 27° per second
- May be limited by door weight after learning cycle.
- 27°per second
- May be limited by door weight after learning cycle.
- X7 - 97, 98, 99
- Sr - parameter
- Door closed - Common
- Door open - Normally Open
- Door closed, locked - Normally Closed
- X3 - 43,3
- Motor lock
- Fo, Fc - parameters
- 2.5 lb f100 N
- Adjustable with potentiometer
- Green - 24 Vdc power
- Red - Error codes
- Yellow - Service interval
- Auto, Close, Open, Exit Only; Off, On
- 4-button keypad, 2-digit display
- Overload protection
- Driving phase optimization
- CC - parameter
- 0 to 1,000,000
- hA, hF, hS - parameters
- Drive support for manual opening door
- PG - parameter
- Auto opening of door at 4° open
