Key Switch Momentary, Single Gang, Requires Mortise Cylinder with Standard Cam, 630/US32D Stainless Steel Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

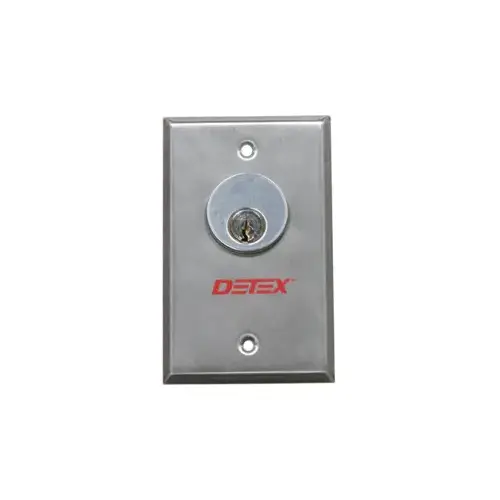

DETEX CS-450 Key Switch Momentary, Single Gang, Requires Mortise Cylinder with Standard Cam, 630/US32D Stainless Steel Finish

Item #: CS-450 by DETEX

Brand: DETEX

See reviewsSee reviews
See reviews summary
In Stock

$287.68

/each
SAVE UP TO 28.77
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available

Key Switches: Single, Momentary, No LED

Single, Momentary, 2 LEDs (Green - Red)
Single, Maintained, 2 LEDs (Green - Red)
Double Switches, Momentary, 2 LEDs (Green - Red)
Double Switches, Maintained, 2 LEDs (Green - Red)
Double Switches, Momentary, No LED
Single, Momentary, No LED
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Relay Action

Momentary (MOM)

Mounting Plate Size

1 Gang

Alternate Part Number-1

170539

Electronic

Yes

Key Switch Cover

No

Key Switches

Single, Momentary, No LED

Product Overview
Detex CS-400 Series Electronic Keyswitches with LED Indicators for Access Control SystemsProfessional Electronic Control Switch Solution

The Detex CS-400 Series Keyswitches provide reliable electronic control for Access Control Systems, Delayed Egress, Electric Dogging and Exit Alarms. Available in eight different configurations with both momentary and maintained switch options, these keyswitches accept standard 5, 6 or 7 pin mortise cylinders with Yale cam. The heavy duty extruded stainless steel faceplate construction ensures durability in commercial applications, while LED indicators (green and red) support 12 or 24 VDC input for system integration.

Professional Features & Benefits
  • Versatile Configuration Options: Available in eight different configurations including momentary (430 and 450 models) and maintained switches (440 and 460 models) to meet diverse application requirements.
  • Universal Cylinder Compatibility: Accepts any standard 5, 6 or 7 pin mortise cylinder with Yale cam for flexible keying options and easy integration with existing systems.
  • Heavy-Duty Construction: Extruded stainless steel faceplate provides exceptional durability and corrosion resistance for long-term commercial use.
  • Flexible Installation Design: 2-position switch bracket allows for clockwise and counter-clockwise rotation of cylinder to accommodate various mounting orientations.
  • Visual Status Indication: Integrated LED indicators (green and red) provide clear operational status with 12 or 24 VDC input capability.
  • Standard Electrical Box Compatibility: Easily fits standard switch outlet box with 1 7/8" deep minimum requirement for straightforward installation.
  • Multi-System Integration: Designed for use with Access Control Systems, Delayed Egress, Electric Dogging, Exit Alarms, and other products requiring remote input control.
Technical Specifications
  • Commercial/Residential: Commercial
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: CS450
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Switches
  • Series: CS-400
  • Subcategory: Accessories
Installation & Operation
  • Verify electrical requirements match available power supply. Confirm voltage (12 or 24 VDC) and current capacity before proceeding.
  • Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  • Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  • Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  • Configure operational settings including switch type (momentary or maintained) and cylinder rotation direction per application requirements.
  • Restore power and test all functions including normal operation, LED indicator functions, and integration with connected systems.
  • Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.
    • Professional Applications
    • Commercial Building Security Systems
    • Access Control System Integration
    • Delayed Egress Control Points
    • Electric Dogging Applications
    • Exit Alarm System Controls
    • Healthcare Facility Access Control
    • Educational Institution Safety Systems
    Why Choose Detex Quality?

    Detex CS-400 Series Keyswitches deliver professional-grade reliability with heavy duty extruded stainless steel construction designed for demanding commercial applications. The versatile eight-configuration design with both momentary and maintained switch options provides flexibility for diverse access control requirements. Engineered for dependable performance in critical security and life safety applications where reliable electronic control is essential.


    KeySwitches Catalog
    Installation Instructions
