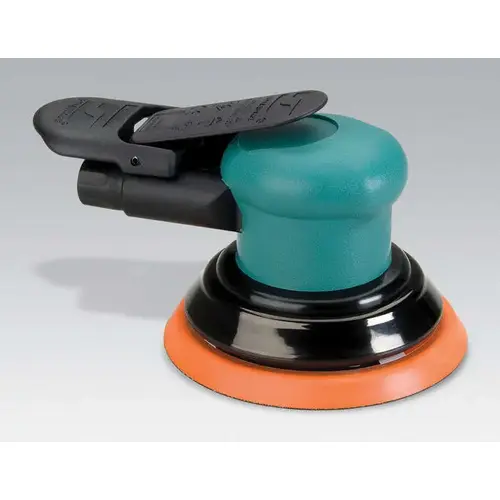

Dynabrade 59035 5IN.(127 mm) Dia. Non-Vacuum Dynorbital-Spirit Random Orbital Sander
Item #: 59035 by Dynabrade
UPC #: 616026590359
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Part no.
59035
MFR Model
59035
Free Speed RPM
12,000
hp (W)
0.25 (186)
Orbit Dia. Inch (mm)
3/32
Tool Spindle Thread
5/16
Vibration Tool Peak Axis ISO8662 (m/sec²)
1.5
Height Inch (mm)
3-1/2
Trade Name
Dynorbital-Spirit
Exhaust Type
Rear
Backing Pad Diameter Inch (mm)
5
Length
6-1/2
Sound Level dB(A)
80
Product Type
Random Orbital Sander
Hose I.D. Size Inch (mm)
1/4
Max. Air Flow @ 90 PSIG: SCFM (LPM)
14 (396)
Thread Pitch
5/16 x 24
Pad Diameter
5 in
Wattage
0.25 hp
Powered By
Air
Attachment Type
PSA
Maximum Speed (rpm)
12000 rpm
Motor Type
Rotary vane motor
Orbit Diameter
3/32 in
Vacuum Type
None
Manufacturer Series
Dynorbital-Spirit
Pad Shape
Round
Air Flow Rate (SCFM)
14 SFCM
Pad Face Material
Vinyl
Product Overview
5" DYNORBITAL SPIRIT SANDER NON VACUUM
* Includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits are available to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. Black lever identifies 3/32" (2.5 mm) dia. orbit, used for ultra-fine sanding.* Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.* Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!* Throttle lever recesses into housing grip when depressed, eliminating pressure-point on operator's palm. Dynorbital-Spirit lever is made from composite material to insulate against cold air. Lever is color-coded to designate tool orbit. Easy maintenance and vacuum conversion. Muffler elements are easily changed for convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound levels.* Speed Control allows thumb-control regulating of tool speed. Lighter air-motor assembly, ideal for vertical and overhead sanding applications. Precision one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing, protected by unique V-Seal, improves bearing life and ensures reduced vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration.
Specifications:
* Includes low profile, premium urethane weight-mated sanding pad. Optional vacuum conversion kits are available to easily convert non-vacuum tool to self-generated vacuum tool or central vacuum tool. Black lever identifies 3/32" (2.5 mm) dia. orbit, used for ultra-fine sanding.* Drop-In Motor available (sold separately) to reduce costly down-time associated with routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor utilizes five blades, producing more usable power (.25 hp/186 W). High-strength, composite rotor has better lubricating qualities, allowing blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to maintain maximum power.* Comfort Platform provides additional hand and wrist support, further enhancing operator comfort. Also offers increased protection against cold air exhaust. (NOTE: Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No. D610,428) separately, to install on existing tools!* Throttle lever recesses into housing grip when depressed, eliminating pressure-point on operator's palm. Dynorbital-Spirit lever is made from composite material to insulate against cold air. Lever is color-coded to designate tool orbit. Easy maintenance and vacuum conversion. Muffler elements are easily changed for convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound levels.* Speed Control allows thumb-control regulating of tool speed. Lighter air-motor assembly, ideal for vertical and overhead sanding applications. Precision one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing, protected by unique V-Seal, improves bearing life and ensures reduced vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub design. Dynabrade premium urethane pads offer smoother operating performance and minimal vibration.
Specifications:
Pkg. Weight (lbs): 2.27
