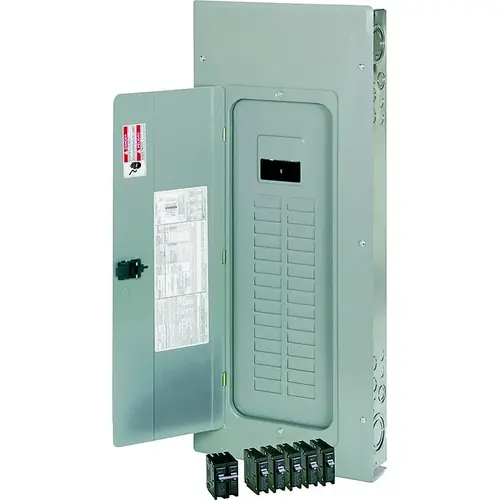

Eaton BRP30B200V25 LOADCNTR MAIN BRKR 30SPS 200A Gray
Item #: BRP30B200V25 by Eaton Corporation
UPC #: 786689055257
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Returnable
Yes
UL Listed
Yes
Height
4.80
Defective Code
A
Breakers Included
Yes
Number of Spaces
30
Maximum Number of Circuits
40 circuits
Width
15.60
Circuit Protection Type
Main Breaker
Sub Brand
Cutler-Hammer
Mounting Type
Flush/Surface
Indoor or Outdoor
Indoor
Volts
240 V
Packaging Type
Boxed
Depth
4-1/4"
Product Type
Main Breaker Load Center
AMPS
200 amps
Each Weight
33.000 LB
Velocity
X
Hazardous Material
No
Alternative UPC
786689055257
Length
35.60
Brand
Eaton
ECCN
EAR99
Country Origin Code
US
Cable Size
6-2/0 AWG
Interrupt Rating
22 kA
Wiring Configuration
2 Hot Ground Neutral
Enclosure Type
NEMA 1
Breaker/Load Center Type
Type BR CSR Main Breaker
Nomenclature
BRP30B200V25/BR3040B200V 3040
Bus Bar Material
Aluminum
Buss Bar Material
Aluminum
Color
Gray
Number of Circuits
60
Number of Phases
1
Current Rating
200 A
Product Overview
LOADCNTR MAIN BRKR 30SPS 200A
Specifications:
Specifications:
Includes: Cover
Galvanized steel enclosure. Single phase, 3 wire, insulated/bondable split neutral, 30 (1") spaces, 40 poles, 120/240 volt. Main breaker type BW at 25,000 AIC. Ground bar kit (necessary for sub-feeding) sold separately. Tin plated aluminum bus bar. Twin neutral with non removable cross bus. When bonded, unused neutral connections may be used for equipment ground protectors in service entrance application. #2 - 300 kcmil wire range. Electrostatic powder coat, baked urethane painted. Rotates 180 degrees for bottom feed; orientation of main breaker handle consistent with NEC 240-81 requirements because it operates horizontally. G1 box - 14-5/16" width x 34-1/8" height x 3-7/8" depth. UL Listed file E52977.
