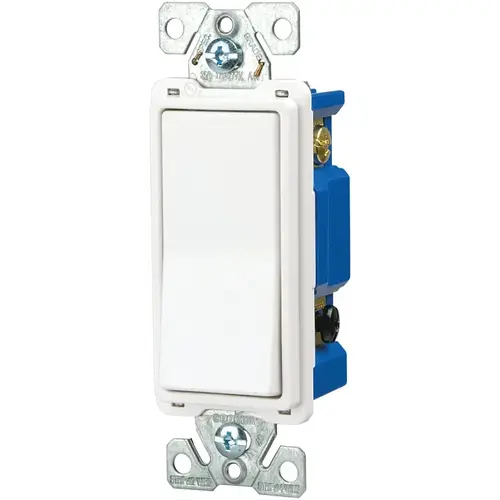

Eaton 7504W-BOX 7500 Rocker Switch, 15 A, 120/277 V, 4-Way, Lead Wire Terminal, White
Item #: 7504W-BOX by Cooper Wiring Devices
UPC #: 032664643835
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
- Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Push-in terminals accept #14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
- Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility
- Lighted switches glow in OFF position
- Redesigned paddle for easier actuation and quiet operation
Mounting Type
Strap
Dimensions
4.19 in L x 1.44 in W x 0.97 in D
Color
White
Terminal Type
Lead Wire
Temperature Rating
-20 to 60 deg C
Contact Configuration
4-Way
Nomenclature
7504W/6504W-BOX ROCKR SWTCH4WY
Current Rating
15 A
Housing Material
Thermoplastic
Specifications:
Application: For fluorescent lighting fixtures and a broad variety of applications, apartments and condos, banks and brokerage firms, business offices or conference rooms, hotels and resorts, medical and dental practices, new home construction, residential upgrades and renovations and retail locations
Includes: (1) Metal Strap
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.
