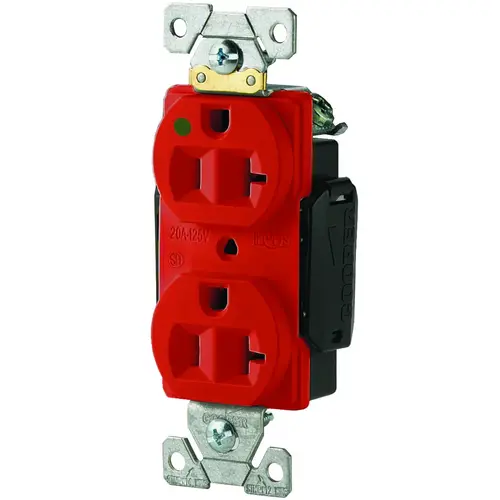

Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, Red

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Eaton AH8300RD Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, Red

Item #: AH8300RD by Cooper Wiring Devices

UPC #: 032664705076

See reviewsSee reviews
See reviews summary
In Stock

$16.11

/each
SAVE UP TO 1.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 286 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
  • Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
  • Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
  • Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
  • High impact-and chemical-resistant nylon face
  • Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
  • All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
  • Long, broad mounting strap helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used

Mounting Type

Wall

Material

Brass

Dimensions

4.19 in L x 1.30 in W x 0.88 in D

Color

Red

Operating Temperature

-20 to 70 deg C

Wire Size

14 to 10 AWG

NEMA Configuration

5-20R

Number of Poles

2

Number of Wires

3

Frequency Rating

60 Hz

Nomenclature

AH8300RD 20A 125V HOSPITAL DUP

Wiring Type

Back Side

Current Rating

20 A

Voltage

125VAC

Grade

Hospital

Amperage

20

Receptacle Type

Duplex

Number of Phases

1

Standards

CSA C22.2 No. 42 File No. 6914

Grounding Style

Self-Grounding

Body Material

Nylon

Mount Type

Flush Mount

Flanged

No

Resistance Features

Antimicrobial

Vendor Drop Ship

N

Wiring Method

Back & Side

Product Overview
RECPT DUPLEX HOSP 3WRE 20A RED

Arrow Hart's feature rich line of hospital-grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
