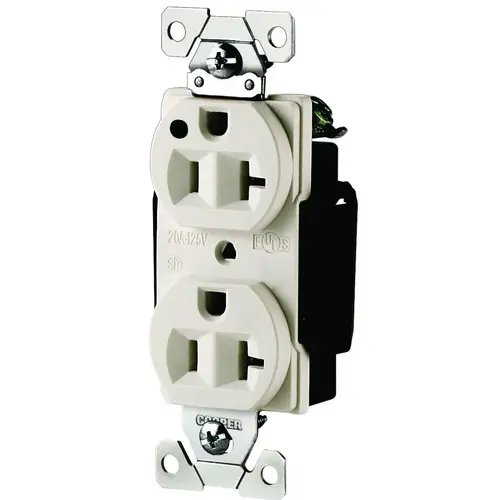

Eaton AH8300W Duplex Receptacle, 2 -Pole, 20 A, 125 V, Back, Side Wiring, NEMA: 5-20R, White
Item #: AH8300W by Cooper Wiring Devices
UPC #: 032664705151
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts ensure smooth plug blade insertion and long-term retention
- Rigid, glass reinforced nylon base lends ultimate strength and great high heat resistance in contact carrier
- Solid brass mounting strap with non-riveted, integral one-piece grounding system for highest durability
- High impact-and chemical-resistant nylon face
- Tapered back wiring lead in slots assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws are plated, triple combination (Slot/Phillips/Robertson) head for great corrosion resistance and maximum flexibility
- Long, broad mounting strap helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
NEMA Configuration
5-20R
Color
White
Wire Size
14 to 10 AWG
Wiring Type
Back Side
Mounting Type
Wall
Operating Temperature
-20 to 70 deg C
Frequency Rating
60 Hz
Current Rating
20 A
Dimensions
4.19 in L x 1.30 in W x 0.88 in D
Number of Poles
2
Nomenclature
AH8300W 20A 125V HOSPITAL DUPL
Material
Brass
Number of Wires
3
Arrow Hart's feature rich line of Hospital Grade receptacles have been designed to meet and exceed the demanding requirements of UL 498 and Federal Specification WC-596 to provide a consistent means of connectivity where downtime can be critical.
