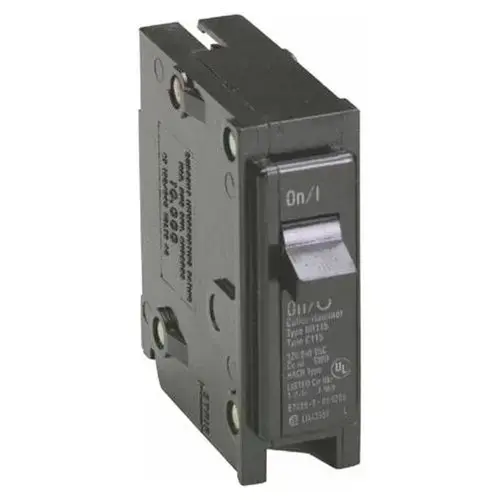

Eaton BR120 Circuit Breaker, Mini, Type BR, 20 A, 1 -Pole, 120/240 V, Plug Mounting Black
Item #: BR120 by Eaton Corporation
Brand: Eaton
UPC #: 786676362108
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Full size Type BR single pole 20 amp breaker
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design
- Ulf Approved for use in Cutler-Hammer, Westinghouse, Bryant ,Challenger
Pack Size
1
AMPS
20 Amps
Volts
120/240 V
Depth
2.89"
UL Listed
Yes
Packaging Type
Bulk
Indoor or Outdoor
Indoor
Allocation Quantity
10
Circuit Protection Type
Plug In
CSA Listed
Yes
Defective Code
A
Each Weight
0.280 LB
Returnable
Yes
Sub Brand
Cutler-Hammer
Velocity
A
Product Type
Circuit Breaker
UNSPSC
39121601
Alternative UPC
786676362108
Product Width (in.)
0.981
Product Height (in.)
2.9245
Product Depth (in.)
2.89
Number of Poles
1
Maximum Amperage
20
Circuit Breaker Type
Plug-On
Certifications and Listings
ANSI Certified, UL Listed
Breaker Type
Single Pole
Manufacturer Warranty
10 years
Phase
Both
Amperage
20 Amp
Certifications
UL
Warranty
10 year limited
Mounting Type
Plug
Voltage
120/240
Height
3.00
ECCN
EAR99
Width
3.00
Country Origin Code
DO
Length
1.00
Hazardous Material
No
Dimensions
2.92 in L x 0.98 in W x 2.89 in H
Application
For overload and short circuit protection of home electrical system
Type
Mini Type BR
Operating Temperature
40 deg C
Wire Size
14 to 4 AWG
Number of Phases
1
Interrupt Rating
42 kA
Operating Frequency
50/60 Hz
Nomenclature
BR120 PLUG-ON 1IN BREAKR20A 1P
Actuator Type
Quick-Make Quick-Break
Current Rating
20 A
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Each Product Weight
0.3 pound
Selling Package Depth
1
Minimum Sell Quantity
1
Frame Size
1-Space
Width (in)
1
Certification
UL Listed
Mount Type
Plug-In
Interruption Type
Standard Trip
MADE IN THE USA
No
Minimum Operating Temperature
600 C
Package Quantity
1
Tripping Mechanism
Thermal-Magnetic
Space Required
1
For Use With
BR Loadcenters
Assembled Product Depth
2.5 in.
AbilityOne
No
ADA Compliant
No
Assembled Product Height
3 in.
Terminal Connection Type
Screw
Material
Thermoplastic
Assembled Product Width
1 in.
GSA Approved
No
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
750 C
TAA/BAA Compliant
Yes
Breaking Capacity
10 kA
Weight (lb)
3.34
Size (W x H x D)
2.90×0.95×2.85
Quantity
1
Used with
Type BR Loadcenters
Mounting Method
Plug-on
Main Circuit Breaker
BR
Security Feature
Standard
Choose Amperage Rating
20A
Compliances
Federal Specifications Classification W-C375
Shunt Trip
Included
Product Overview
CIRCUIT BREAKER 1P 1IN 20A BR
Switching duty rating. Thermal magnetic 40 deg C. Interchangeable, will replace Bryant, Westinghouse and Challenger. Type BR. 120/240 V, 10,000 AIR. 1 in per pole.
