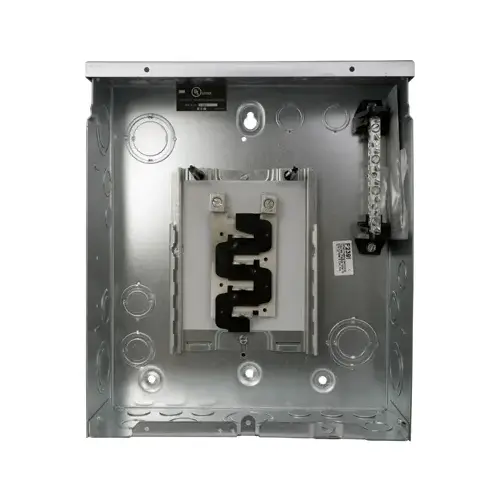

Eaton BR816L125SDP BR Load Center, 125 A, 8 -Space, 16 -Circuit, Main Lug, NEMA 1 Enclosure, Light Gray
Item #: BR816L125SDP by Eaton Corporation
UPC #: 786676001427
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 125 Amp Maximum, Main Lug only
- Larger knockout provides easier installation and time savings
- Accepts Type BR Duplex and Quadplex Breakers
- Top or bottom feed, straight-in wiring saves labor and material, one panel for either top or bottom applications
- Type BR sub panel
- 2/0 lug easily removable and can be installed in any location on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, optional LED indicates one of six trip codes for circuit diagnostics, provides a clean gutter space
- Excellent conductivity and corrosion resistance, copper bus options available
- Drywall marking on enclosure - indicates proper mounting depth for flush applications
- Tangential center knockout, easier installation for conduit applications
- Commercial-grade main breaker, 25 kAIC series rated main breaker for great protection
- Neutral bus (strap) is easily removable for sub-panel applications
- Bonding Z-strap provides easy field conversion for service entrance applications
Height
4.20
ECCN
EAR99
Width
13.70
Country Origin Code
US
Length
18.90
Hazardous Material
No
Color
Light Gray
Bus Bar Material
Aluminum
Number of Spaces
8
Number of Circuits
16
Mounting Type
Surface
Breaker/Load Center Type
Main Lug
Application
For use as service equipment
Enclosure Type
NEMA 1
Current Rating
125 A
Cable Size
14 to 1 AWG
Interrupt Rating
10 kA
Nomenclature
BR816L125SDP 125A MAIN LG PANL
Warranty
10 years
Number of Phases
1
Wiring Configuration
3-wire
Voltage
120/240
Wire Size
#14 To #1
Amperage
125
Phase
Single
Width (in)
11
Depth (in)
3.56
Height (in)
13
Certification
UL Listed
Series
BR
Mount Type
Surface
Max Number of Poles
16
Product Overview
LOADCNTR MAIN LUG BR INDR 125A
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
