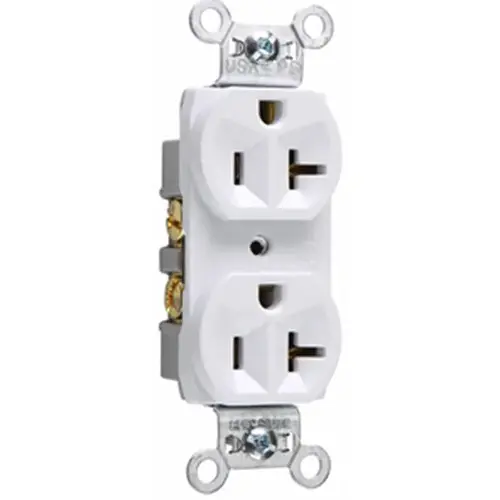

Eaton CR20W Duplex Receptacle, 2 -Pole, 20 A, 125 V, Side Wiring, NEMA: 5-20R, White

Item #: CR20W by Cooper Wiring Devices

UPC #: 032664489235

See reviewsSee reviews
See reviews summary
In Stock

$4.50

/each
SAVE UP TO 0.45
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3858 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Sturdy, compact design meets the demands of commercial spec grade performance
  • Excellent plug blade retention provided by 0.032 in (0.81mm) triple-wipe brass line contacts and 0.050 in (1.27mm) brass ground
  • High impact-and chemical-resistant nylon face
  • 0.035 in galvanized steel, wraparound yoke mounting strap for great assembly security, extra length/width helps reach large panel cutouts for code compliance
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Screw-Catch feature on duplex devices speeds mounting of wallplates

Mounting Type

Yoke

Material

PVC

Dimensions

4 in L x 1.24 in W x 0.79 in D

Color

White

Operating Temperature

-20 to 60 deg C

Wire Size

14 to 10 AWG

NEMA Configuration

5-20R

Number of Poles

2

Number of Wires

3

Frequency Rating

60 Hz

Nomenclature

CR20W WHT COM GRD RECEPT 20A

Wiring Type

Side

Current Rating

20 A

Configuration

2-pole, 3-wire, grounding

Voltage

125V AC

Grade

Specification

Amperage

20

Receptacle Type

Duplex

Number of Phases

1

Standards

CSA Certified

Grounding Style

Self-Grounding

Mount Type

Flush

Flanged

No

UNSPSC Code

39121406

Vendor Drop Ship

N

Wiring Method

Back & Side

Product Overview
RECEPTACLE DPLX WHT 20A/125V
Specifications:

Material: PVC

Application: For all environments uses

Dimensions: 4 in L x 1.24 in W x 0.79 in D

Commercial specification-grade straight blade receptacles - 15 A-125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
