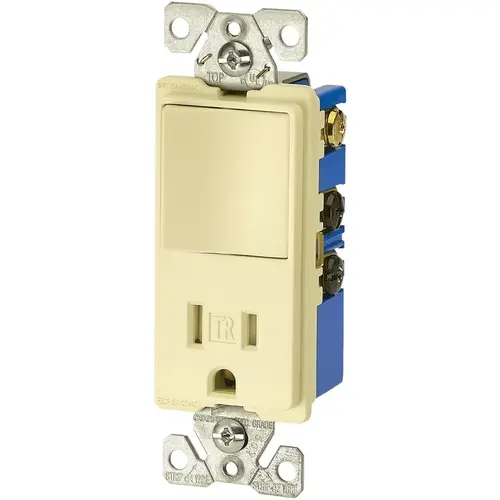

Eaton TR7730VClick To Copy Combination Switch/Receptacle, 1 -Pole, 15 A, 120/277 V, Ivory
Item #: TR7730V by Cooper Wiring Devices
UPC #: 032664722493
See reviewsSee reviews
In Stock
$18.26
/eachSAVE UP TO 1.83
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 167 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire stripper speeds installation
- Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Break-off provision for wiring both devices on the same circuit or on separate circuits
- Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
Mounting Type
Flush
Material
Thermoplastic
Dimensions
1.08 in D x 4.19 in H
Type
Heavy-Duty
Color
Ivory
Operating Temperature
-20 to 60 deg C
Wire Size
14 to 12 AWG
Dielectric Strength
1500 V
Number of Poles
1
Terminal Type
Screw
Nomenclature
TR7730V DECO SWITCH&RECEPT IVR
Wiring Type
Back and Side
Current Rating
15 A
Product Overview
SWITCH/RECPT DECR TR 15A IVORY
Specifications:
Specifications:
Application: For commercial applications
Decorator heavy-duty-grade combination device features 15 A 120 V switch and tamper-resistant 15 A receptacle. Features UL listed tamper-resistant shutters designed to prevent the insertion of foreign objects. TR7730 switch is horsepower-rated for motor loads per UL 20. Thermoplastic rocker, top and backbody are virtually unbreakable to deliver years of durable performance. Ultrasonic welding and integrated construction of the strap and body provide excellent ground integrity even under heavy use. Durable, injection molded housings and PVC resin comply with UL94 V0 flammability ratings. Tri-combo screw heads offer greater installation flexibility.
