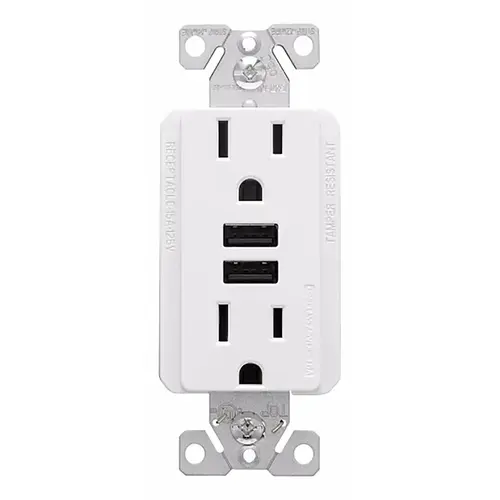

Eaton TR7765W-KB-L USB Combination Receptacle, 2 -Pole, 15 A at 125 VAC, 3.6 A at 5 VDC, 125 VAC, 5 VDC, 2 -USB Port White

Item #: TR7765W-KB-L by Cooper Wiring Devices

UPC #: 032664767128

See reviewsSee reviews
In Stock

$38.26

/each
SAVE UP TO 3.83

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Dual USB ports charges most compatible USB electronic devices
  • Tamper-resistant shutters provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
  • Replaces a standard duplex receptacle
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire strippers speed installation

Material

Thermoplastic

Dimensions

4.19 in H x 1.3 in W x 1.4 in D

Color

White

Operating Temperature

-4 to 140 deg F

Wire Size

14 to 12 AWG

NEMA Configuration

NEMA 5-15R

Number of Poles

2

Number of Wires

3

Frequency Rating

140 kHz

Nomenclature

TR7765W-KB-L/TR7755W-K-L RECEP

Wiring Type

Screw Terminals Side and Back

Current Rating

15 A at 125 VAC 3.6 A at 5 VDC

Product Overview
RECEPTACLE TMPRPRF USBCHRG WHT
Specifications:

Dimensions: 4.19 in H x 1.3 in W x 1.4 in D

Material: Thermoplastic

EATON USB Combination Receptacle, 125 VAC, 5 VDC, 15 A at 125 VAC, 3.6 A at 5 VDC, 140 kHz Frequency, 2 Pole, 3 Wires, 2 USB Ports, Screw Terminals, Side and Back Wiring, 14 to 12 AWG Wire, NEMA 5-15R, -4 to 140 deg F Operating, Thermoplastic, White, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
