Fire Rated Exit Alarm Long Push Paddle Type, Deadbolt Panic Device for Secondary Exits, Photo Luminescent Paddle Sign, 100DB, 24-1/8" Paddle Gray

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

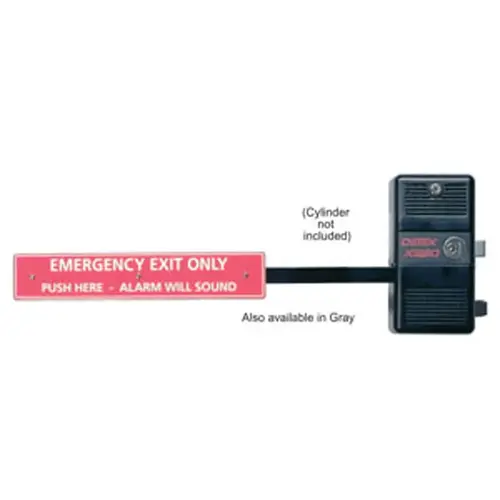

DETEX ECL600 Fire Rated Exit Alarm Long Push Paddle Type, Deadbolt Panic Device for Secondary Exits, Photo Luminescent Paddle Sign, 100DB, 24-1/8" Paddle Gray

Item #: ECL600 by DETEX

UPC #: 008060666006

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$667.51

/each
SAVE UP TO 66.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 78 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Dimensions

5-3/4"W x 3-3/4"D x 10-3/8"H

Handing

Non Handed

Color

Gray

Door Thickness

1-3/4" - 2-1/4"

Maximum Door Width

48 in.

Pack Size

1

Bar Type

Push Bar

Function

Exit Only

Strike

Reversible Surface / Flush Strike

Series

Exit Control Locks Series

UNSPSC

31162800

Alternate Part Number-1

147809

Door Type

Aluminum, Wood, Hollow Metal

exit device type

Alarm Paddle

Manufacturer Parent

Detex

Stile Width

5-3/4 Inch

Device Rating

Fire Exit Hardware

Finish Description

Primed for Paint

Latch Throw

3/4 Inch

Latch Type

Deadlocking

Electrified Features

100 Decibel Alarm Powered by 9 Volt Battery

Hand

Non-Handed

Sub-Series

ECL-600

ADA Compliant

No

Application

Single and Double Door

Function Family

Part/Component

Standards

NFPA 80 & 101 for Life Safety, CA Title 19; ANSI/BHMA Certified; California State Fire Marshall 4140-0127:102; ADA

Product Type

Electronic Exit Device/Trim

Features

1" Throw Dead Bolt; Relatching for Additional Security; Saw Resistant Dead Bolt; Corrosion Resistant Alloy Lock Body; Durable Steel Plate With Photo Luminescent Sign; Resetting the Alarm can only be Accomplished With a Control Key

Warranty

10 Year Mechanical; 3 Year Electrical Limited

For Door Width

34 Inch

Door Material

Wood; Hollow Metal; Aluminum

Included Components

9V Battery

Finish Family

Prime

Dimension

5-3/4" x 10-3/8" with 24-1/8" Push Bar

Use With

Exit Control

Material

Steel

Fire Rated

Yes

Manufacturer Warranty

Limited 10 Year Mechanical and 3 Year Electronic Warranty

UL Listing Type

UL Listed

Power Supply

Wired

Door Range

1-3/4" x 2-1/4"

Hazardous Material

No

No of inners

1

Product Overview
ECL-600 FIRE-RATED EXIT CONTROL LOCK

The ECL-600 is a fire-rated, code compliant, rugged dependable relatching exit with a steel plate and device photo-luminescent sign providing managed security and a 100 decibel alarm for secondary fire exits.


Product Features
  • 1" throw deadbolt and 3/4" dead locking latch bolt
  • Relatching for additional security
  • Saw resistant dead bolt
  • Corrosion resistant alloy lock body
  • 100 decibel alarm, powered by 9-volt battery (included)
  • Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
  • Durable steel plate with photo-luminescent sign absorbs light to then "glow in the dark" when lights are dimmed
  • Non-handed
  • Locking and unlocking the deadbolt always arms and disarms the alarm
  • Resetting the alarm can only be accomplished with a control key

Technical Information
  • Door Types - Wood, Hollow Metal or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4"
  • Minimum standard door width for ECL-600 is 34"
  • Machine and Sheet Metal Screws (Std.)

Detex Limited Warranty

10 Year Limited Manufacturers Warranty
