30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Warranty
Standard
Pack Size
1
UNSPSC
39121600
Manufacturer Warranty
Standard
Brand/Model Compatibility
Universal
HVAC Product Type
HVAC Part
Product Depth (in.)
.8125
Product Height (in.)
3
Product Width (in.)
.8125
Voltage
250V VAC
Package Quantity
1
UL Listed
No
Amperage
35 Amp
ADA Compliant
No
MADE IN THE USA
No
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Interrupting Rating
200,000 amps (200 kA) RMS, AC
Color
Brass
Maximum Amperage
35 amp
Terminal Type
Ferrule
Fuse Type
Cartridge Fuse
Body Material
Melamine, Tin-Plated Copper
Number of Elements
2
Fuse Body Type
Cylindrical
Fuse Timing
Time Delay
UL Class
RK5
Product Overview

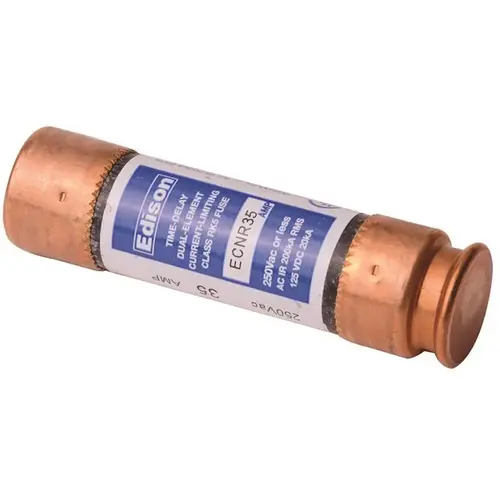

This fuse is designed to help in protecting against motor overload, ground fault, and short-circuits. It also helps to improve blackout prevention and offers protection against burnout from single phasing on three phase systems. The overload element provides protection against low-level overcurrent of overloads, and will hold an overload 5 times greater than the ampere rating of the fuse for a minimum of 10 seconds.
- Provides time delay for temporary over-current conditions and motor running protection for heating and air conditioning equipment
- Eliminates unnecessary maintenance from harmless overloads
- U.L. class RK-5, standard for safety 198E - current limiting fuses
- Interrupting rating 200,000 Amps rms. A.C
- Easy to use and install
