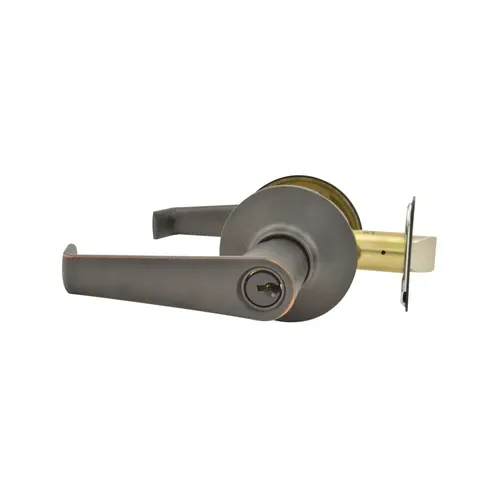

Schlage Residential F80 ELA 716 Elan Lever Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Aged Bronze Finish
Item #: F80 ELA 716 by Schlage Residential
Brand: Schlage Residential
UPC #: 194555034068
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Box Pack
- Reversible Handing
- Storeroom Function - Outside Knob/Lever Fixed; Entry by Key Only; Inside Knob/Lever Always Unlocked
- Includes All Mounting Hardware for Easy Installation
- Applications: Residential single- and multi-family doors
- Lifetime Mechanical & Finish Warranty
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Backset
Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Design
Elan Lever
Finish
Aged Bronze
Function
Storeroom
Series
F Series
Strike
Round and Square Corner Full Lip Strikes
Color
Antique Bronze
Color Code
716
Handing
Reversible
Grade
ANSI/BHMA Grade 2
Application
Residential entry and side doors or anywhere where keyed security is needed.
Warranty
Limited Lifetime Mechanical and Finish Warranty
Keyway
Schlage C
Door Thickness
1-3/8" to 1-3/4"
Bolt Throw
1/2 Inch
Cylinder Type
Conventional Cylinder
Latch Throw
1/2 Inch
Finish Description
Aged Bronze
ANSI Function
F86
Latch Type
Deadlatch
Strike Number
10-027
Strike Type
Radius, Full Lip
ADA Compliant
YES
Finish Family
Antique Bronze
Included Components
Keyed Storeroom Knobs/Levers, Roses, Latch, Strike, Mounting Hardware
Lever Style
ELA-Elan
Strike Size
1-5/8 x 2-1/4 Inch
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Product Material
Zinc
Strike Name
Round Corner Full Lip
Standards
ANSI/BHMA A156.39-2015; UL Listed
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Outside knob/lever always locked. Entrance by key only. Inside knob/lever always unlocked.
Front Size
1" x 2-1/4"
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Storeroom
Product Projection
2.7188 Inch
Features
Highest Industry Ratings for Residential Security, Durability and Finish; Installs in Minutes; Reversible Levers
Product Type
Cylindrical Lock
Number of Pins
5
Manufacturer Parent
Allegion
Rose Size
2-3/4" Diameter
Door Edge Bore
1 Inch
Lever Style Family
Straight With Return
Sub-Series
F80-ELA
Lever Knob Design
Elan Lever
Dimension
3-7/8" Lever and 2-7/16" Projection with 2-3/4" Diameter Rose
Strike Dimension
1-5/8" x 2-1/4"
No of inners
1
Door Range
1-3/8" to 1-3/4"
No Of Pins
5 Pin Cylinder
Finish code
716
Material
Zinc
Cross Bore Size
2-1/8" Bore
Rose/Escutcheon Design
Plymouth Rose
Latch Faceplate Dimension
1" x 2-1/4"
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Hazardous Material
No
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Lever
Keying
None (Select for Less Cylinder Options)
Handle Design
Elan Lever
Electronic
No
Lever/Knob Design
Elan Lever
Door Handing
Non-Handed
Lever Design
Elan Lever
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Projection
2-7/16"
Product Overview
Storeroom Lock, Elan Lever, Antique Bronze
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any dcor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Easy 3-step installation, only a screwdriver needed.
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
