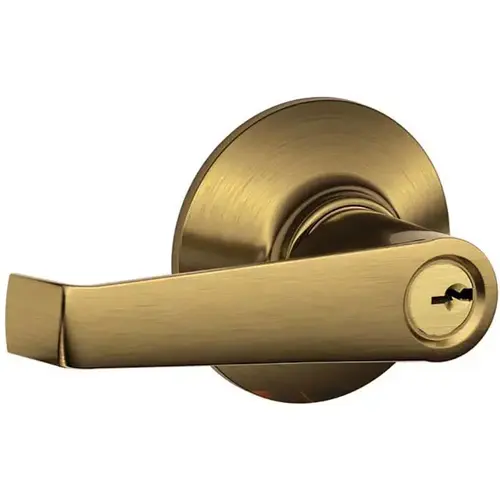

Schlage Residential F80 ELA 609 Elan Lever Storeroom Lock C Keyway with 16211 Latch and 10063 Strike Antique Brass Finish
Item #: F80 ELA 609 by Schlage Residential
Brand: Schlage Residential
UPC #: 194555198593
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Box Pack
- Reversible Handing
- Storeroom Function - Outside Knob/Lever Fixed; Entry by Key Only; Inside Knob/Lever Always Unlocked
- Includes All Mounting Hardware for Easy Installation
- Applications: Residential single- and multi-family doors
- Lifetime Mechanical & Finish Warranty
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- U.L. Listed: Locks for up to three-hour fire doors available
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- Backset: Universal latch standard, fits either 2-3/8" (60mm) or 2-3/4" (70mm) backsets. 5" (127mm) backset available
- ADA compliant: Yes
Backset
Triple Option Adjustable Dead Latch, 2-3/8" or 2-3/4" Backset
Design
Elan Lever
Finish
Antique Brass
Function
Storeroom
Series
F Series
Strike
Round and Square Corner Full Lip Strikes
Color
Satin Brass Blackened Satin Relieved Clear Coated
Color Code
609/US5
Handing
Reversible
No Of Pins
5 Pin Cylinder
No of inners
1
Lever Knob Design
Elan Lever
Latch Faceplate Dimension
1" x 2-1/4"
Finish code
609
Cross Bore Size
2-1/8" Bore
Strike Dimension
1-5/8" x 2-1/4"
Hazardous Material
No
Door Range
1-3/8" to 1-3/4"
Rose/Escutcheon Design
Plymouth Rose
Manufacturer Warranty
Limited Lifetime Mechanical and Finish Warranty
Door Thickness
1-3/8" to 1-3/4"
Keyway
Schlage C Keyway
Material
Zinc
Dimension
3-7/8" Lever and 2-7/16" Projection with 2-3/4" Diameter Rose
Grade
Grade 2
ANSI/BHMA Standards
F81
Keyed
Yes
Handle Type
Lever
Keying
None (Select for Less Cylinder Options)
Handle Design
Elan Lever
Electronic
No
Lever/Knob Design
Elan Lever
Door Handing
Non-Handed
Lever Design
Elan Lever
Standard Strike
10-027: Full Lip Radius Strike, 2-1/4" x 1-5/8"
Substrate Type
Zinc and Steel
Door Thickness Range
1-3/8" To 1-3/4"
Lock Type
Cylindrical
Standard Latch
16-086: Dead Latch, Dual Option (Round, Drive-in)
Projection
2-7/16"
Product Overview
Storeroom Lock, Elan Lever, Antique Brass
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any dcor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Easy 3-step installation, only a screwdriver needed.
Schlage's F Series designs range from bold to classic to match any residential décor. Plus, it features an easy 3-step installation, only a screwdriver needed.
