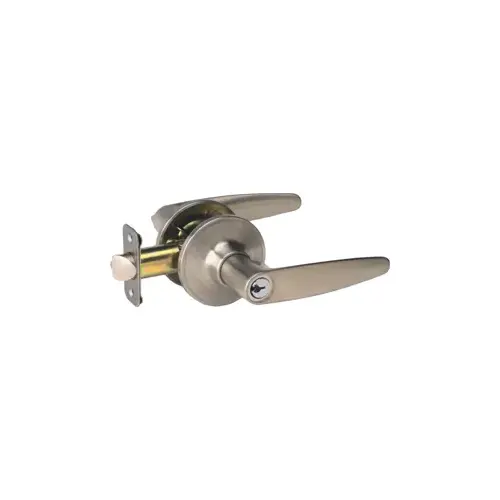

Schlage Residential J54 DOV 630 J54 Dover Keyed Entry Lever Lock, Satin Stainless Steel
Item #: J54 DOV 630 by Schlage Residential
UPC #: 043156756537
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Entry (Keyed) Function - Locked by Key and Rotating Cylinder from Outside; Unlocked by Key on Outside or from Turn Button on inside
- ADA Compliant: Yes
- Applications: Residential single- and multi-family doors
- ANSI/BHMA A156.36 Grade 3
- Reversible Handing
- Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.
- Certifications: ANSI A156.2, 1996, Series 4000 Grade 2
- Includes All Mounting Hardware for Easy Installation
- Lifetime Mechanical & 5 Year Finish Warranty
- Door thickness range: 1-3/8" to 1-3/4" (35mm-44mm) standard
- UL Listed: Locks for up to three-hour fire doors available
Finish
Satin Stainless Steel
Function
54-Keyed Entry
Series
J Series
Design
Dover
Handing
Reversible
Strike
Full Lip 2-1/4 Inch, Radius Corner
Backset
2-3/8 Inch or 2-3/4 Inch
Color Code
630/US32D
Grade
ANSI/BHMA Grade 3
Keyway
Schlage C
Cylinder Type
Conventional Cylinder
Finish Description
Satin Stainless Steel
Lever Style
DOV-Dover
Keyblank Grouping
SCHR-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Cylindrical Lock
Projection
2.7500
Door Thickness
1-3/8" to 1-3/4"
Bore Size
2.1250
Product Height
2-5/8 Inches
Product Length
4.3750
Included Components
(2) Brass Cut Keys
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Box Length
6.6900
Box Width
5.7100
Box Height
3.0700
Application
Residential Single and Multi-Family Doors
Warranty
Lifetime Mechanical Warranty and 5-Year Finish Warranty
Bolt Throw
1/2 Inch
Strike Type
Full Lip
ADA Compliant
YES
Finish Family
Stainless Steel
Strike Size
1-5/8 x 2-1/4 Inch
Standards
ANSI/BHMA A156.2-2010; ADA
Faceplate Dimension
1" x 2-1/4"
Door Preparation
Cross Bore 2-1/8"; Edge Bore 7/8"
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2-3/4 Inch
Latch Type
Drive-In
Features
Guaranteed To Fit On Existing, Standard Pre-Drilled Doors; Lever Design Pairs Well With Transitional Styles; Easy Installation With Screwdriver; Self-Aligning Screw Holes Make Installation Easy And Hassle-Free
Manufacturer Parent
Allegion
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.07x5.71x6.69
Lever Style Family
Straight Lever
Sub-Series
RL_Lever_Locksets_schlage_residential_302
Cylinder Included
Yes
Alternate Part Number-1
133134
Latch Bolt Type
Deadlatch
Knob/Lever Design
Dover
Latch Bolt Faceplate Size
2-1/4" x 1"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/8"
Latch Bolt Face Type
Drive-In, Round Corner, Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
1-3/4"
Knob/Lever Style
Lever
Height
3.15
Length
6.69
Width
5.71
Dimension
4-11/16" Lever Length and 2-5/8" Projection with 2-5/8" Diameter Rose
Material
Stainless Steel
Manufacturer Warranty
Limited Lifetime Mechanical and 5 Year Finish Warranty
Rose/Escutcheon Design
Round Rose
Door Range
1-3/8" to 1-3/4"
Hazardous Material
No
Strike Dimension
2-1/4" x 1-5/8" x 1-1/8" Lip
Cross Bore Size
2-1/8" Bore
Finish code
630
Latch Faceplate Dimension
Square and Round Corner 1" x 2-1/4" Faceplate or 1" Collar
Lever Knob Design
Dover Lever
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
J SeriesLevers
From classic looks that never go out of style to bold contemporary designs, Schlage's levers and door handles fit and accentuate virtually any décor. Available in a variety of functions, you can choose the perfect look for every room in your house - it's the easiest way to give your entire home a style upgrade.
Available Functions: J10/F75 - Hall & Closet*:- Both levers always unlocked
- Turn-button locking. Can be opened from outside by turning outside turn mechanism
- From interior, turning inside turn-button releases inside lever
- Push-button locking. Can be opened from outside with small circular tool
- Turning inside knob/lever releases button
- ADA Compliant
- Non-turning trim for one side of door
- Used for door pull or as matching inactive trim
- Unlocked by key from outside whenouter knob is locked by turn-button in inside knob
- Inside knob is locked and unlocked by turn-button
- *Non-keyed Locks
- **Keyed Locks
- 16-255 - Triple Option (Round, Square, Drive-in) - Standard
- 16-061 - UL Listed, Square Corner
- 16-254 - Dual Option (Round, Drive-in) - Standard
- 16-070 - Triple Option Spring Latch for handlesets
- 10-101 - Round Corner Full Lip - Standard
- ANSI/BHMA A156 .2-2011 Commercial Grade 3
- Dual Option: 1" x 2 1/4", 1/4" round faceplate and drive-in
- Triple Option: 1" x 2 1/4", square corner and round corner faceplate, drive-in latch (J54)
- 1 5/8" x 2 1/4", radius corner, full lip, no box
- Adjustable for 2 3/8" or 2 3/4"
- 5-pin, C keyway, keyed alike (KA4)
- 1 3/8" - 1 3/4"
- Two brass cut keys per lock, 5-pin, C section
- Bright Brass (US3)
- Antique Brass (US5)
- Satin Nickel (US15)
- Antique Pewter (US15A)
- Matte Black (US19)
- Bright Chrome (US26)
- Satin Chrome (US26D)
- Satin Stainless Steel (US32D)
- Aged Bronze
- *Non-standard finishes are not available
- Full-color swatch examples available on inside Levers tab
