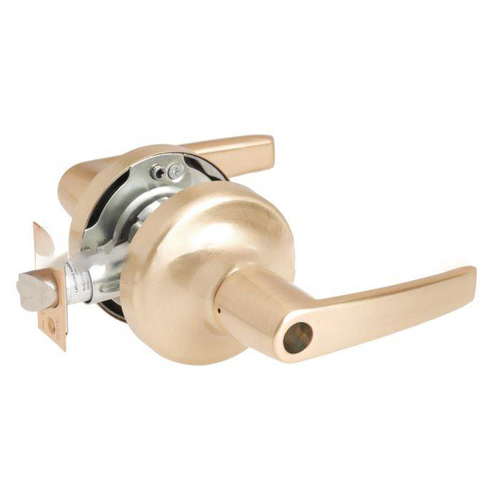

Yale Commercial MO5307LN612LC 5300LN Series Standard Duty Lever Lock, Satin Bronze

Item #: MO5307LN612LC by Yale Commercial

See reviews

In Stock $215.08 /each

SAVE UP TO 21.51

Buying in bulk

Roll over image to zoom in

Yale Commercial MO5307LN612LC 5300LN Series Standard Duty Lever Lock, Satin Bronze

Item #: MO5307LN612LC by Yale Commercial

See reviews See reviews

In Stock $215.08 /each

SAVE UP TO 21.51

Buying in bulk

QUICK SHIPPING*

Usually ships in 1 business day

QTY
+
+ Add to Wishlist

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Function

07LN-Entry

Finish

Satin Bronze

Backset

2-3/4", 1-1/8" x 2-1/4", Square Corner

Strike

ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corner

Design

Monroe

Grade

ANSI/BHMA Grade 2

Cylinder Type

Conventional Less Cylinder

Finish Description

Satin Bronze

Lever Style

MO-Monroe

Rose/Escutcheon Trim

Round Rose

Product Type

Cylindrical Lock

Projection

3.5000

Lever Length

4.6250

Door Thickness

1 3/4" - 2"

Latch Number

380AN

Strike Number

497

ADA Approved

False

612 Satin Bronze, MO Levers, Entry, 497 Strike, 380AN Latch, Less Cylinder
5300LN SeriesCertified Cylindrical Lever Locks

The 5300LN Series Cylindrical Lever Lock is a reliable Grade 2 cylindrical lockset that boasts innovative design and construction features. The Free Wheeling lever mechanism helps to resist against vandalism, while the adjustable door thickness feature makes for easy installation. Protected by a five year warranty and a lifetime warranty against lever sag and spring breakage, you can rely on the 5300LN to withstand the rigors of everyday use.

With innovative features in an affordable lock, Yale Works for You℠.

MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria.
MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Benefits: Secure:
  • Designed to withstand everyday use and resist damage and vandalism
Versatile:
  • Variety of functions, trims, finishes and keying options for ultimate installation flexibility
Protected:
  • Five year mechanical warranty plus a lifetime warranty against lever sag and lever spring breakage
Strong & Reliable:
  • ANSI/BHMA Grade 2 certified for long life and durability
Features:
  • Free Wheeling lever mechanism prevents vandalism and reduces lock maintenance
  • Adjustable door thickness mechanism
  • Heavy duty torsion spring prevents lever sag throughout product's lifetime
  • Thrubolts solidly through the door, providing greater strength and stability
  • Available with a wide range of cylinder options
  • Available in 23 functions (including electrified), 12 standard finishes and 3 lever designs
  • ADA compliant for ease of accessibility
Specifications: Backset:
  • 2-3/4" standard
Door Thickness:
  • Adjustable for doors 1-3/4" to 2"
Handing:
  • Non-handed, field reversible
Latchbolt:
  • 2-3/4" backset, 1/2" throw
Strike:
  • ANSI strike 4-7/8" x 1-1/4" x 1-1/4" lip to center
ANSI/BHMA:
  • Certified Grade 2, ANSI/BHMA A156.2
UL/cUL:
  • Listed for 3 hour fire doors
Windstorm:
  • Certified, check local codes
Warranty:
  • 5 years
Finishes: 605:
  • Bright Brass, Clear Coated
606:
  • Satin Brass, Clear Coated
609:
  • Satin Brass, Blackened, Satin Relieved, Clear Coated
612:
  • Satin Bronze, Clear Coated
613E:
  • Dark Oxidized Satin Bronze - equivalent
616:
  • Satin Bronze, Blackened, and Satin Relieved, Clear Coated
620:
  • Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated
625:
  • Bright Chrome Plated
626:
  • Satin Chrome Plated*
693:
  • Black Painted
BSP:
  • Black Suede Powder Coat
WSP:
  • White Suede Powder Coat
  • *Finish available with MicroShield® antimicrobial coating. Add YMS suffix to order MicroShield antimicrobial coating.
  • MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
