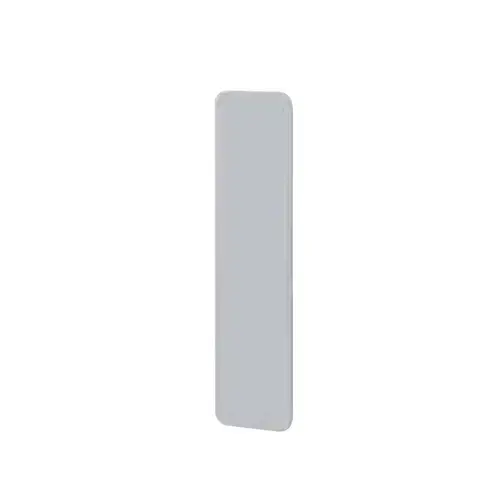

Von Duprin 230EO US28 Exit Only Blank Plate Trim for 22 Series, Lacquer Sprayed Aluminum Finish

Item #: 230EO US28 by Von Duprin

See reviewsSee reviews
See reviews summary
In Stock

$98.98

/each
SAVE UP TO 9.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Includes optional 10 gauge (2.4mm) steel escutcheon
  • Overall plate measurements: 12.0625" Height X 3" Length
  • Compatible with all 22 series exit devices

Material

Stainless Steel

Approved for Commercial Use

Yes

Door Thickness

1-3/4"

Width

3

Handing

Left, Reversible, Right

Handle Material

Metal

UL Listed

Yes

Product Class

Commercial

Theme

Commercial

BHMA Certification

Grade 1

ADA

Yes

Fire Rated

No

Panic Proof

Yes

Handle Style

Grip

Configuration

Exterior Trim

Exit Trim Function

Exit Only

Height

12.0625

Collection

230

Grade

Grade 1

Color

Satin Aluminum Clear Anodized

Color Code

628/US28

Package Volume

0

Package Qty

1

Trim Type

Blank Plate

Base Material

Aluminum

Product Type

22 Series Trim

For Use With

22 Series Exit Devices

Hand

Non-Handed

Function

EO-Exit Only

Trim Design

Escutcheon with Pull Handle

Finish Description

Aluminum Painted

ADA Compliant

No

Finish Family

Aluminum

Product Material

10 Gauge Steel

Standards

ANSI/BHMA A156.3 (2014) Grade 1

Trim Style

DT

Device Trim Function

Pull When Dogged

Device Pull Center To Center

5-1/2 Inch

Function Family

Dummy Exit Device Trim

Device Trim ANSI Function

02

Product Projection

2 Inch

Trim Plate Width

3 Inch

Trim Plate Height

12-1/16 Inch

Trim Plate Thickness

3/32 Inch

Features

Flexibility; Versatile Design Enables You to Add Functionality to Existing Devices in a Cost-Effective Way

Series

22 Series Trim

Manufacturer Parent

Allegion

Sub-Series

VonDuprin-230EO

Product Overview

Blank Plate, Satin Aluminum Clear Anodized

The 230EO, 230DT, 230NL and 230TP have a heavy 10 gauge (2.4mm) steel escutcheon. The 230L has a cast zinc 3/4 In. (19mm) depth escutcheon. #06 lever style furnished standard, #03 and #17 optional style levers are available. 230L furnished RHR if handing is not specified. Cylinder must be ordered separately for the 230NL, 230TP and 230L trims.

Several Von Duprin Trims are available to choose from.
